Wago 221-483 3-Wire Lever Splicing Connector, 221 Series, Pack of 50
Wago
$37.50

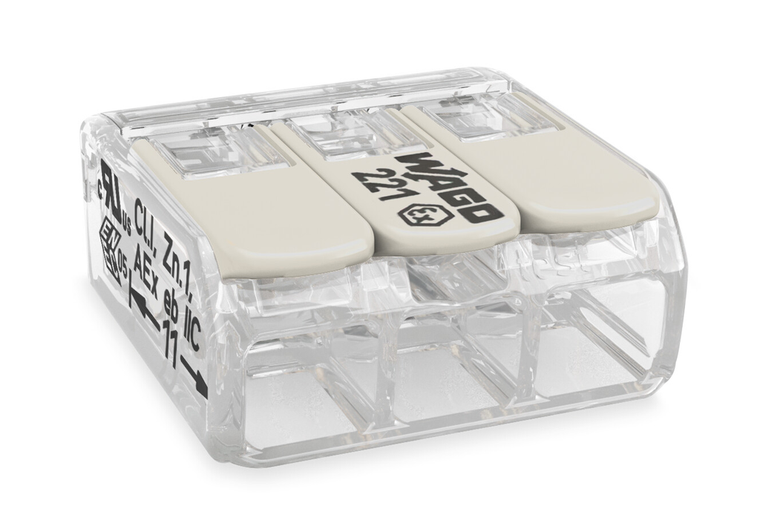

This compact 3-conductor lever connector from the Wago 221 Series provides tool-free terminations for solid, stranded, and fine-stranded conductors using CAGE CLAMP spring technology. It accepts conductor sizes from 0.14 to 4 mm² (2412 AWG) and is rated up to 32 A in Ex e II applications with working voltages up to 275 V or 440 V, depending on installation. The transparent housing and gray levers allow visual inspection of full conductor insertion and strip length, supporting reliable field or panel wiring in control, machinery, building installation, and Ex eb Zone 1/2 environments. Housing material meets UL94 V0 flammability and the design is suitable for hazardous location approvals including ATEX, IECEx, and AEx categories listed for this series.
Documentation
- Technical Datasheet 221-483 COMPACT Splicing Connector
- https://www.wago.com/global/wire-splicing-connectors/compact-splicing-connector/p/221-483-datasheet
- Installation Instructions 221 Series Lever Splicing Connectors
- https://www.wago.com/global/documentation/221-series-installation-instructions
- Approvals and Ex Certifications Overview 221-483
- https://www.wago.com/global/wire-splicing-connectors/compact-splicing-connector/p/221-483-approvals
- CAD/3D Model Data 221-483
- https://www.wago.com/global/wire-splicing-connectors/compact-splicing-connector/p/221-483-cad
- color:
- Gray
- country of origin sales organisation germany:
- CN
- depth:
- 32.9 mm / 1.295 inch
- fire load:
- 0.048 MJ
- flammability class per ul94:
- V0
- height:
- 52.5 mm / 2.067 inch
- packaging type:
- Box
- weight:
- 1.598 g
- width:
- 1 mm / 0.039 inch
