Wago 221-500 Pack of 10

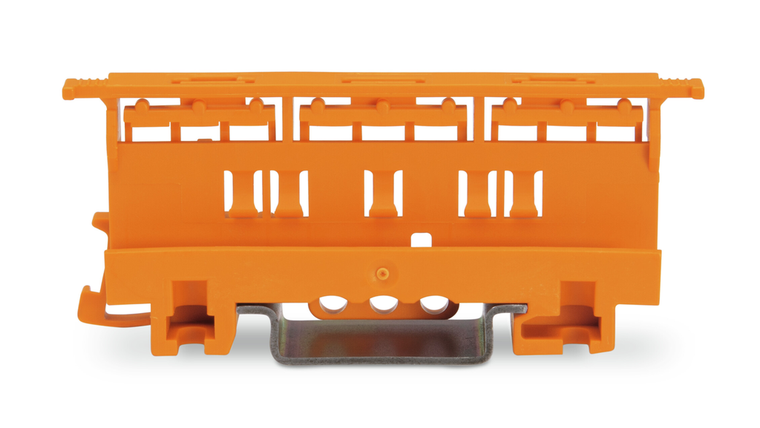

Wago 221-500 Mounting Carrier for 221 Series, DIN-35 Rail/Panel Mount, Orange, Pack of 10

Wago
SKU:
221-500
Availability:
In our warehouse: 3
$10.20
Condition:
New
Current Stock:
Description
The WAGO 221-500 is a mounting carrier designed to organize and mount WAGO 221 Series lever-nut splicing connectors onto DIN-35 rail systems or directly to panels using screw mounting. Compatible with 2-, 3-, and 5-conductor connectors rated for 4mm² conductors (24–12 AWG), this polyamide PA66 component features a UL94 V0 flammability rating and RoHS compliance. The orange-colored carrier provides a compact, organized solution for wire termination and conductor splicing in control panels, switchboards, and industrial electrical installations where space and accessibility are critical. Documentation - [Technical Datasheet](https://www.wago.com/us/wire-splicing-connectors/mounting-carrier/p/221-500) - [Installation and Mounting Instructions](https://www.wago.com/us/technical-documentation/mounting-carrier-221-500) - [221 Series Product Family Overview](https://www.wago.com/us/wire-splicing-connectors/221-series-lever-nuts) - [3D CAD Model and Dimensional Data](https://www.wago.com/us/cad-downloads/221-500-mounting-carrier)
Additional Information
color:
Orange
country of origin sales organisation germany:
CN
depth:
33.5 mm / 1.319 inch
fire load:
0.095 MJ
flammability class per ul94:
V0
height:
88.6 mm / 3.488 inch
packaging type:
Box
weight:
3.170 g
width:
1 mm / 0.039 inch
