Wago 221-503/000-004 Mounting Carrier for 221 Series, 3-Conductor, Panel Mount, Black, Pack of 10
Wago
$8.52

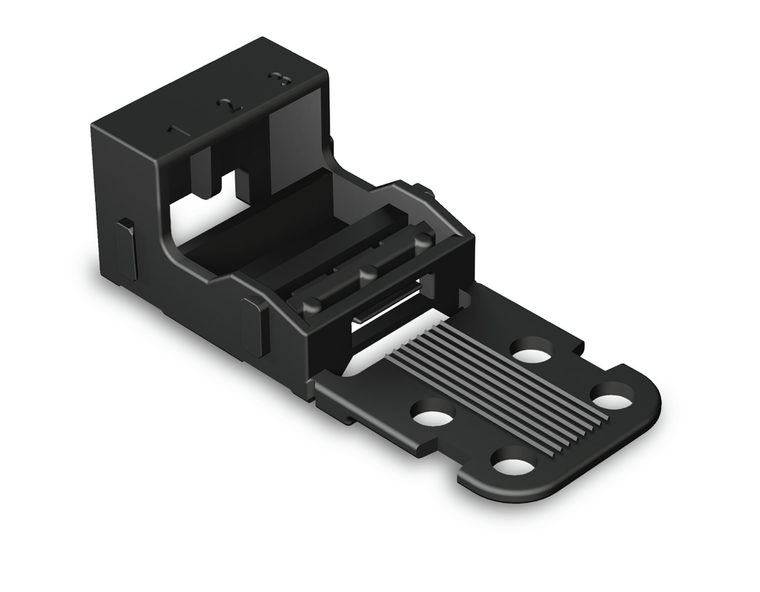

Wago 221-503/000-004 Mounting Carrier for 221 Series, 3-Conductor, Panel Mount, Black
This panel-mount carrier is designed for 3-conductor WAGO 221 Series splicing connectors for 4 mm² (2412 AWG) conductors, providing secure mechanical retention and orderly routing of lever-nut terminations in enclosures and control panels. It offers screw mounting to flat surfaces, a compact footprint, and a black PA66 housing with UL94 V0 flammability for use in demanding industrial environments. Typical applications include fixed mounting of field wiring terminations, serviceable connection points, and organized wiring layouts where free-hanging connectors are not acceptable.
Documentation
- Technical Datasheet 221-503/000-004
- https://www.wago.com/us/wire-splicing-connectors/mounting-carrier-221-series-24-12-awg/p/221-503_000-004
- Installation and Application Notes 221 Series Mounting Carriers
- https://www.wago.com/us/wire-splicing-connectors/mounting-carrier-221-series-4-mm2/p/221-500_000-006
- 221 Series Wire & Splicing Connectors Product Family Overview
- https://www.wago.com/us/discover-wire-and-splicing-connectors-old/221
- 2D/3D CAD Data 221-503/000-004 Mounting Carrier
- https://www.wago.com/us/wire-splicing-connectors/mounting-carrier-221-series-24-12-awg/cad/221-503_000-004
- color:
- Black
- country of origin sales organisation germany:
- CN
- depth:
- 52.8 mm / 2.079 inch
- fire load:
- 0.000 MJ
- flammability class per ul94:
- V0
- height from the surface:
- 16.9 mm / 0.665 inch
- insulation material:
- Polyamide (PA66)
- mounting type:
- Screw mount
- packaging type:
- Box
- suitable:
- For 3-wire connectors (4 mm)
- weight:
- 3.600 g
- width:
- 23.7 mm / 0.933 inch
