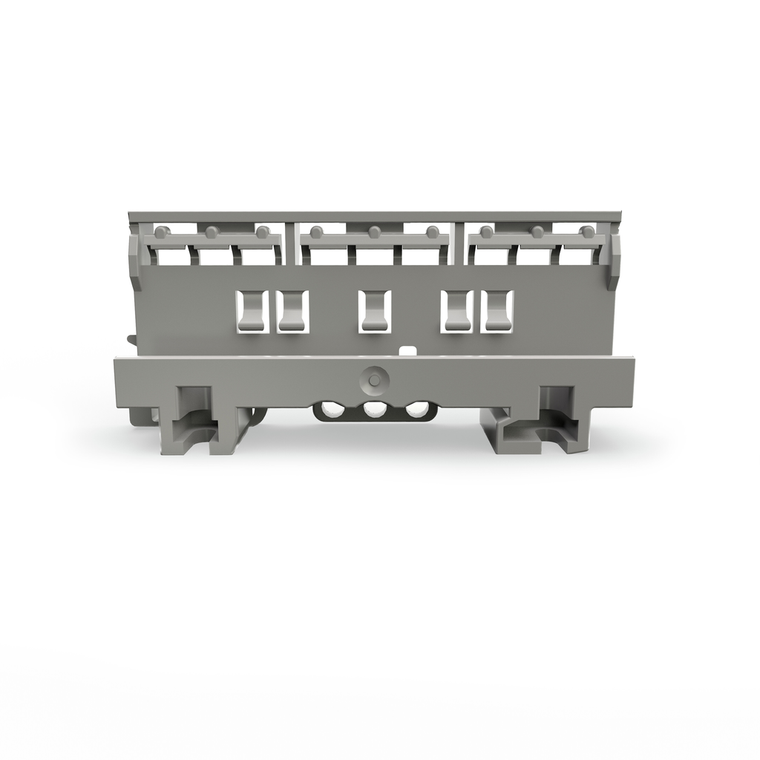

Wago 221-511 Mounting Carrier for 221 Series, 6mm², DIN-35 Rail/Screw Mount, Light Gray, Pack of 10
Wago
$16.30
The Wago 221-511 is a mounting carrier for 2-, 3- and 5-conductor 221 Series Ex splicing connectors up to 6 mm², providing a secure and organized method of panel or rail installation in hazardous-area and general industrial control assemblies. It supports both DIN-35 rail and screw mounting, allowing horizontal or vertical installation on flat surfaces or standard DIN rail using conductive or non-conductive screws as required by the application voltage. The carrier is molded from UL94 V0-rated polyamide 66 in light gray, with a compact footprint (approx. 19.3 mm width, 80.8 mm depth, 28.3 mm height from rail) and low fire load, and allows easy insertion, removal, and testing of the 221 connectors once installed.
Documentation
- Technical Datasheet WAGO 221-511 Mounting Carrier
- `https://www.wago.com/global/wire-splicing-connectors/mounting-carrier/p/221-511`
- Installation Instructions WAGO 221-511 Mounting Carrier for 221 Series Ex
- `https://www.wago.com/global/dowload/221-511-installation-instructions.pdf`
- Product Family Overview WAGO 221 Series Ex Splicing Connectors and Accessories
- `https://www.wago.com/global/wire-splicing-connectors/221-series-ex`
- CAD Data (2D/3D) WAGO 221-511 Mounting Carrier
- `https://www.wago.com/global/cad/221-511`
- color:
- Light gray
- country of origin sales organisation germany:
- CN
- depth from upper edge of din rail:
- 28.3 mm / 1.114 inch
- fire load:
- 0.000 MJ
- flammability class per ul94:
- V0
- height:
- 80.8 mm / 3.181 inch
- insulation material:
- Polyamide (PA66)
- mounting type:
- DIN-35 rail || Screw mount
- packaging type:
- Box
- suitable:
- For 2-, 3- and 5-conductor 221 Series Ex Splicing Connectors (6 mm)
- weight:
- 11.890 g
- width:
- 19.3 mm / 0.76 inch
