Wago

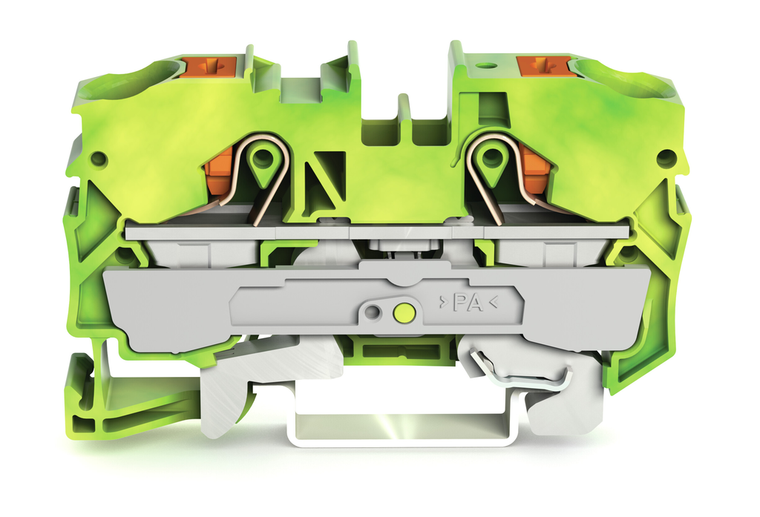

WAGO 2210-1207

(No reviews yet) Write a Review
SKU:
2210-1207
MPN:
2210-1207
Condition:
New
actuation type:
Push-in || Push-button || Operating tool
color:
Green-yellow
connectable conductor materials:
Copper
connection technology:
Push-in CAGE CLAMP
country of origin sales organisation germany:
DE
depth from upper edge of din rail:
36.9 mm / 1.453 inch
design:
Horizontal type
fine stranded conductor:
0.5 16 mm / 20 6 AWG
fine stranded conductor with ferrule push in termination:
4 10 mm / 12 8 AWG
fine stranded conductor with insulated ferrule:
0.5 10 mm / 20 8 AWG
fire load:
0.000 MJ
flammability class per ul94:
V0
height:
67.6 mm / 2.661 inch
insulation material:
Polyamide (PA66)
marking level:
Center/side marking
mounting type:
DIN-35 rail
nominal cross section:
10 mm
note conductor cross section:
Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
packaging type:
Box
ratings per:
IEC/EN 60947-7-2
solid conductor:
0.5 16 mm / 20 6 AWG
solid conductor push in termination:
2.5 16 mm / 14 6 AWG
strip length:
17 19 mm / 0.67 0.75 inch
weight:
30.890 g
width:
10 mm / 0.394 inch
wiring direction:
Front-entry wiring
  • Wago 2210-1207
  • Wago 2210-1207
  • Wago 2210-1207
$8.13

Description

TOPJOBS ground terminal block with Push-buttons; rail mount; 2-conductor; 10 mm wide; green-yellow.

The WAGO 2210 TOPJOB S series ground/earthing terminal block is designed for Ex e II applications and features a 1-deck level with side and center marking slots. It includes a test port and is green-yellow in color. The terminal block supports one grounding/protective-earth connection for two wires using push-in CAGE CLAMP spring connections, accommodating wire sizes from 0.5mm² to 16mm² (#20AWG to #6AWG) with a nominal cross-section of 10mm². It mounts on a DIN-35 rail (35 x 15 / 35 x 7.5) and has a width of 10mm, equivalent to model 22101207.
