Wago 2231-104/008-000

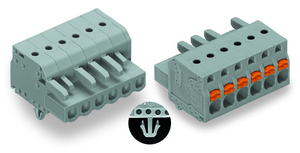

WAGO 2231-104/008-000 1-Conductor Female Plug, Push-Button, Snap-In Mounting, 2.5 mm², 4-Pole, 5 mm Pin Spacing, Gray

Wago
SKU:
2231-104/008-000
Availability:
Factory stock
$6.49
Condition:
New
Current Stock:
Description
Description Female connector; with snap-in mounting feet; 4-pole; with integrated push-buttons; Pin spacing 5 mm / 0.197 in; codable; with 2 latches; Plate thickness 0.6x1.2 mm; Fixing holes 3.5 mm
Remarks Item description:
  • Universal connection for all conductor types
  • Easy-to-use design does not require special tools
  • Ability to wire while mated
  • Simple, push-in termination of solid and ferruled stranded conductors
  • Integrated test ports for testing parallel to conductor entry
  • Coding option available



Item properties

Miscellaneous

Name Value Unit
No. of poles  4
Pin spacing  5 mm (0.197 in)
Total number of connection points  4
Total number of potentials  4
Color  gray
Ratings per  IEC/EN 60664-1
Rated voltage (III / 3) [V]  320  V
Rated impulse voltage (III / 3) [kV]  4  kV
Rated voltage (III/2) [V]  320  V
Rated impulse voltage (III / 2) [kV]  4  kV
Rated voltage (II / 2) [V]  630  V
Rated impulse voltage (II / 2) [kV]  4  kV
Rated current [A]  16  A
Legend for ratings  (III / 2) Overvoltage category III / Pollution degree 2
Number of connection objects  1
Number of levels  1
Connection technology  Push-in CAGE CLAMP
Number of connection points connector  1
Actuation type  Operating lever
Solid conductor  0.2 2.5 mm / 24 12 AWG
Fine-stranded conductor  0.2 2.5 mm / 24 12 AWG
Fine-stranded conductor with ferrule with plastic collar  0.25 1.5 mm /
Fine-stranded conductor with ferrule without plastic collar  0.25 2.5 mm /
Strip length  10 11 mm / 0.39 0.43 Inch
Material group  I
Insulating material  Polyamide 66 (PA 66)
Flammability class per UL94  V0
Limit temperature range  -60 100
Clamping spring material  Chrome-nickel spring steel (CrNi)
Contact material  Copper alloy
Contact plating  tin-plated
Fire load [MJ]  0.137  MJ
Weight [g]  6.542  g
Width  21.5 mm / 0.846 Inch
Height  19.5 mm / 0.768 Inch
Height from the surface  15 mm / 0.591 Inch
Depth  25.6 mm / 1.008 Inch
Pin spacing from [mm]  5  mm
Type of mounting  Panel mounting
Mounting type  Snap-in mounting foot
.

The WAGO component equivalent to 2231104008000 is a specific part or model within the WAGO product line, which is known for its high-quality electrical interconnection and automation solutions. This component is likely used in various applications requiring reliable and efficient electrical connections, such as in industrial automation, building technology, and other electrical engineering fields. WAGO components are recognized for their durability, ease of use, and innovative design, making them a preferred choice for professionals in the industry.

Additional Information
actuation type:
Push-button
approvals per:
UL 1059
clamping spring material:
Chrome nickel spring steel (CrNi)
color:
Gray
conductor entry direction to mating direction:
0
connection technology:
Push-in CAGE CLAMP
connector connection type:
For conductor
contact material:
Copper alloy
contact plating:
Tin-plated
contact type pluggable connector:
Female connector/socket
country of origin sales organisation germany:
PL
depth:
25.6 mm / 1.008 inch
fine stranded conductor:
0.2 2.5 mm / 24 12 AWG
fine stranded conductor with insulated ferrule:
0.25 1.5 mm
fine stranded conductor with uninsulated ferrule:
0.25 2.5 mm
fire load:
0.137 MJ
flammability class per ul94:
V0
height:
19.5 mm / 0.768 inch
height from the surface:
15 mm / 0.591 inch
housing sheet thickness:
0.6 1.2 mm / 0.024 0.047 inch
insulation material:
Polyamide (PA66)
legend ratings:
(III / 2) Overvoltage category III / Pollution degree 2
limit temperature range:
-60 +100 C
locking of plug in connection:
Without
material group:
I
mismating protection:
No
mounting type:
Snap-in foot || Panel mounting
nominal voltage ii 2:
630 V
nominal voltage iii 3:
320 V
packaging type:
Box
pin spacing:
5 mm / 0.197 inch
pole no:
4
rated current:
16 A
rated current csa use group b:
15 A
rated current csa use group c:
15 A
rated current csa use group d:
0.416666666666667
rated current ul 1977:
15 A
rated current ul use group b:
15 A
rated current ul use group c:
15 A
rated current ul use group d:
0.416666666666667
rated surge voltage ii 2:
4 kV
rated surge voltage iii 2:
4 kV
rated surge voltage iii 3:
4 kV
rated voltage csa use group b:
300 V
rated voltage csa use group c:
150 V
rated voltage csa use group d:
300 V
rated voltage iii 2:
320 V
rated voltage ul 1977:
600 V
rated voltage ul use group b:
300 V
rated voltage ul use group c:
150 V
rated voltage ul use group d:
300 V
ratings per:
IEC/EN 60664-1
safety information 1:
The MCS MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure
solid conductor:
0.2 2.5 mm / 24 12 AWG
strip length:
10 11 mm / 0.39 0.43 inch
weight:
6.522 g
width:
21.5 mm / 0.846 inch
