Description

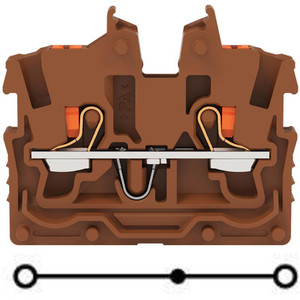

2-conductor miniature through tb with push-button 1 mm², brown.
View AllClose
The WAGO 2250 TOPJOB S series is a brown, feed-through miniature terminal block designed for Ex e II applications, featuring a single deck with side and center marking slots, and a test port. It supports one feed-through pole with two push-in wire connections, suitable for wire sizes ranging from 0.14mm² to 1.5mm² or #24AWG to #16AWG, with a nominal cross-section of 1mm². The terminal block is rated for a current of 13.5A and utilizes Push-in CAGE CLAMP spring connections, designed for mounting on a DIN-15 rail with a width of 3.5mm, equivalent to model 22501201000014.
