Description
2-conductor miniature through tb with push-button 1 mm², black.
View AllClose

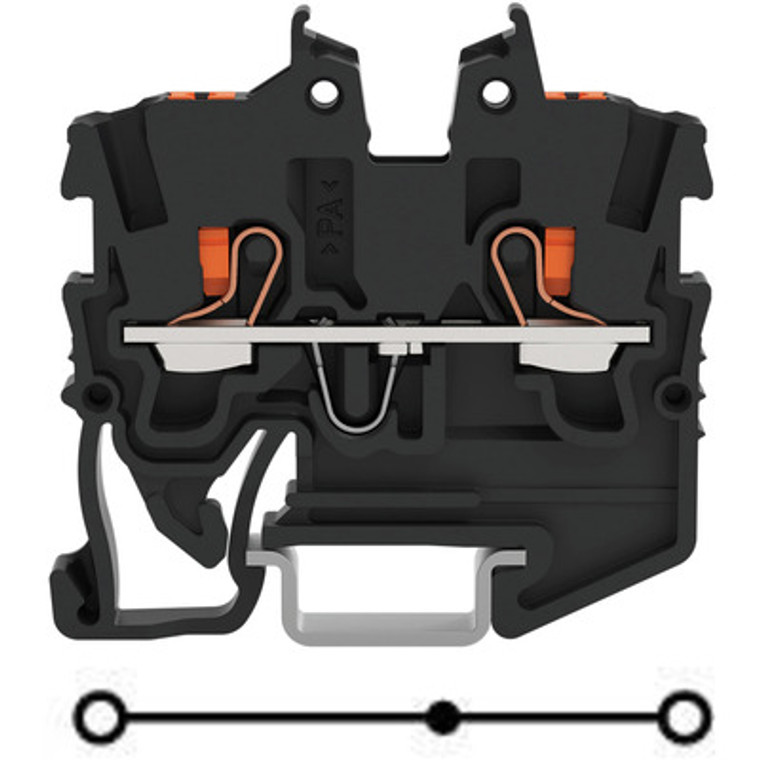

The WAGO 2250 TOPJOB S series is a black, feed-through miniature terminal block designed for Ex e II applications, featuring a single deck with side and center marking slots, a test port, and push-in CAGE CLAMP spring connections. It supports one feed-through pole for two wires (1 push-in + 1 push-in) with a nominal cross-section of 1mm², suitable for wire sizes ranging from 0.14mm² to 1.5mm² or #24AWG to #16AWG. The terminal block is rated for a current of 13.5A and is mounted on a DIN-15 rail with a width of 3.5mm, equivalent to model 22501205.
