Description

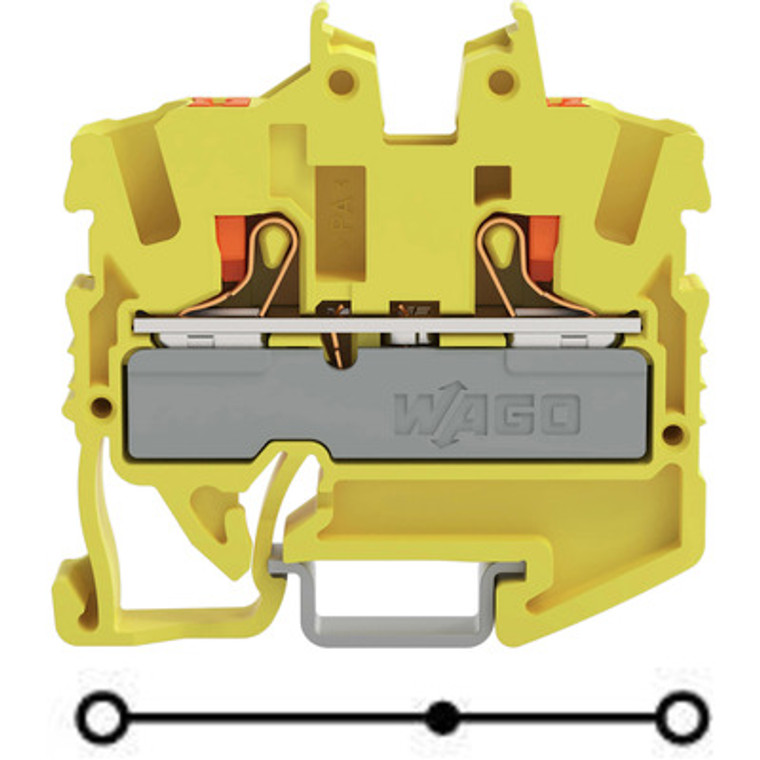

2-conductor miniature through tb with push-button 2.5 mm², yellow.
View AllClose
The WAGO 2252 TOPJOB S series is a yellow feed-through miniature terminal block designed for Ex e II applications, featuring a single deck with side and center marking slots, a test port, and push-in CAGE CLAMP spring connections. It accommodates one feed-through pole for two wires (1 push-in + 1 push-in) with a nominal cross-section of 2.5mm², suitable for wire sizes ranging from 0.25mm² to 4mm² or #22AWG to #12AWG. Rated for a current of 24A, it mounts on a DIN-15 rail with a width of 5.2mm and is equivalent to model 22521206.
