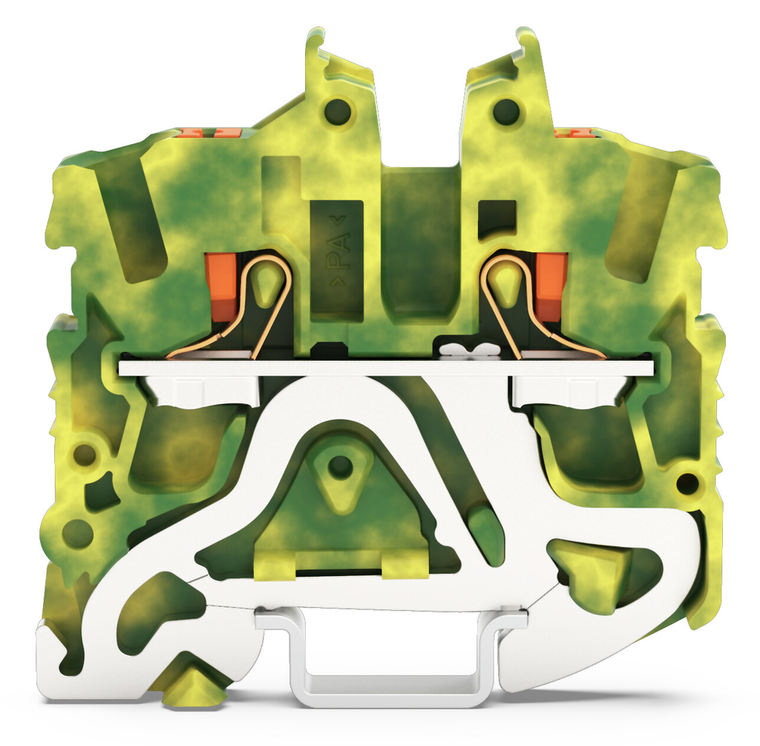

WAGO 2252-1207 2-cond. miniature ground terminal block, with push-button, green-yellow
2-cond. miniature ground terminal block, with push-button, green-yellow.
The WAGO 2252 TOPJOB S series miniature ground/earthing terminal block is designed for Ex e II applications and features a single deck/level with both side/lateral and center marking slots. It is green-yellow in color and supports one grounding/protective-earth (1PE) connection for two wires using push-in CAGE CLAMP spring connections. The terminal block accommodates a nominal cross-section of 2.5mm² and is suitable for wire sizes ranging from 0.25mm² to 4mm² or #22AWG to #12AWG. It mounts on a DIN-15 rail and has a width of 5.2mm, equivalent to model 22521207.
- actuation type:
- Push-in || Push-button || Operating tool
- color:
- Green-yellow
- connectable conductor materials:
- Copper
- connection technology:
- Push-in CAGE CLAMP«
- country of origin sales organisation germany:
- DE
- depth from upper edge of din rail:
- 30.8 mm / 1.213 inch
- design:
- Horizontal type
- fine stranded conductor:
- 0.25 ª 4 mm / 22 ª 12 AWG
- fine stranded conductor with ferrule push in termination:
- 1 ª 2.5 mm / 18 ª 14 AWG
- fine stranded conductor with insulated ferrule:
- 1 ª 2.5 mm / 18 ª 14 AWG
- fire load:
- 0.000 MJ
- flammability class per ul94:
- V0
- height:
- 36.5 mm / 1.437 inch
- insulation material:
- Polyamide (PA66)
- marking level:
- Center/side marking
- mounting type:
- DIN-15 rail
- nominal cross section:
- 2.5 mm
- note:
- Available September 2021
- note conductor cross section:
- Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
- ratings per:
- IEC/EN 60947-7-2
- solid conductor:
- 0.25 ª 4 mm / 22 ª 12 AWG
- solid conductor push in termination:
- 1 ª 4 mm / 18 ª 12 AWG
- strip length:
- 10 ª 12 mm / 0.39 ª 0.47 inch
- weight:
- 7.160 g
- width:
- 5.2 mm / 0.205 inch
- wiring direction:
- Front-entry wiring
