Description
2-conductor miniature through tb with push-button 2.5mm², black.
View AllClose

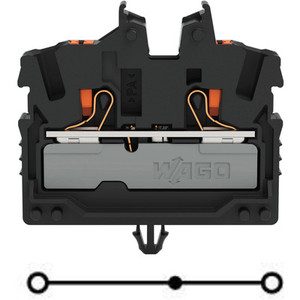

The WAGO 2252 TOPJOB S series is a black, feed-through miniature end terminal block designed for Ex e II applications, featuring a single deck with side and center marking slots, a test port, and push-in CAGE CLAMP spring connections. It supports one feed-through pole for two wires (one push-in each) with a nominal cross-section of 2.5mm², suitable for wire sizes ranging from 0.25mm² to 4mm² or #22AWG to #12AWG, and is rated for a current of 24A. The terminal block is designed for flange or surface mounting and is equivalent to model 2252305.
