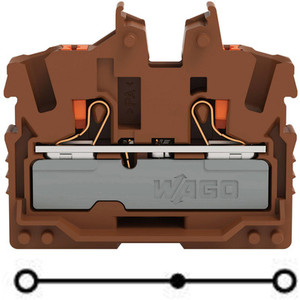

WAGO 2252-311/000-014 2-conductor miniature through tb with push-button 2.5mm², brown

The WAGO 2252 TOPJOB S series is a brown, feed-through miniature terminal block designed for Ex e II applications, featuring a single deck with a snap-in mounting foot and side/center marking slots. It includes a test port and supports one feed-through pole for two wires using push-in CAGE CLAMP spring connections. The terminal block accommodates wire sizes from 0.25mm² to 4mm² (#22AWG to #12AWG) with a nominal cross-section of 2.5mm² and a rated current of 24A. It can be mounted on a DIN rail or surface using an accessory snap-in foot mounting with a width of 5.2mm, equivalent to part number 2252311000014.
