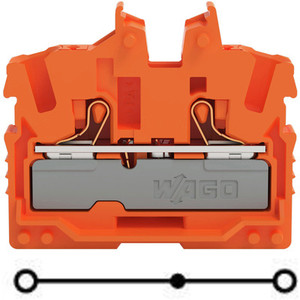

WAGO 2252-312

The WAGO 2252 TOPJOB S series is an orange, feed-through miniature terminal block designed for Ex e II applications, featuring a single deck with a snap-in mounting foot and side/center marking slots. It supports one feed-through pole for two wires using push-in CAGE CLAMP spring connections, suitable for wire sizes ranging from 0.25mm² to 4mm² (#22AWG to #12AWG) with a nominal cross-section of 2.5mm² and a rated current of 24A. The terminal block can be mounted on a DIN rail or surface using an accessory snap-in foot mounting, with a width of 5.2mm, and includes a test port. It is equivalent to model 2252312.
