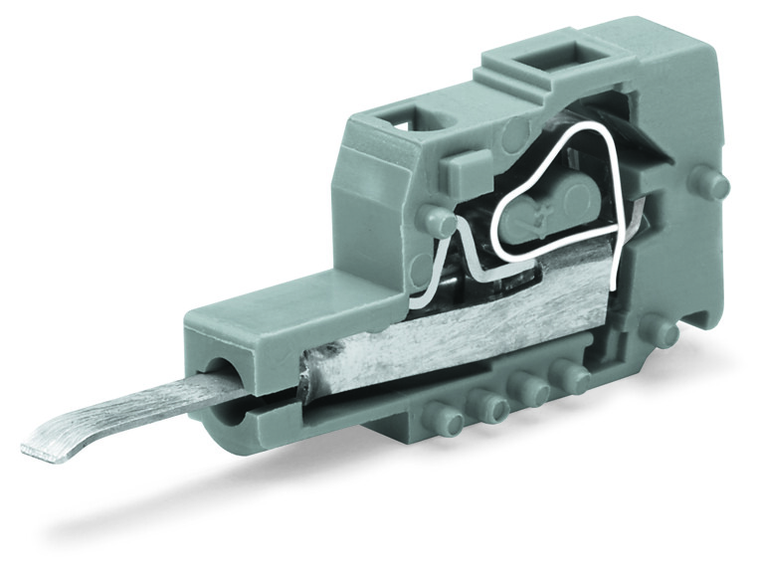

WAGO 231-127 Testing plug module with contact stud; for 236 Series; Pin spacing 5 mm / 0.197 in; 2,50 mm²; gray
Wago
$5.60
(No reviews yet)
Write a Review
Write a Review
Wago
WAGO 231-127 Testing plug module with contact stud; for 236 Series; Pin spacing 5 mm / 0.197 in; 2,50 mm²; gray
Testing plug module with contact stud; for 236 Series; Pin spacing 5 mm / 0.197 in; 2,50 mm²; gray.
The WAGO component equivalent to 231127 is a specific part used in electrical and automation systems. It is designed to provide reliable and efficient connectivity solutions, ensuring secure and stable connections for various applications. This component is known for its high quality, durability, and ease of use, making it a preferred choice for professionals in the industry. It is compatible with a range of systems and can be integrated seamlessly into existing setups, offering flexibility and versatility in its application.
- application:
- Testing without connected conductor
- clamping spring material:
- Chrome nickel spring steel (CrNi)
- color:
- Gray
- connection technology:
- CAGE CLAMP
- contact material:
- Electrolytic copper (ECu)
- contact plating:
- Tin-plated
- country of origin sales organisation germany:
- DE
- depth:
- 36.45 mm / 1.435 inch
- fine stranded conductor:
- 0.08 2.5 mm / 28 12 AWG
- fire load:
- 0.024 MJ
- flammability class per ul94:
- V0
- height:
- 14.3 mm / 0.563 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 2) Overvoltage category III / Pollution degree 2
- limit temperature range:
- -60 +105 C
- material group:
- I
- packaging type:
- Box
- pin spacing:
- 5 mm / 0.197 inch
- rated current:
- 0.5 A
- rated surge voltage iii 2:
- 2.5 kV
- rated voltage iii 2:
- 250 V
- ratings per:
- IEC/EN 60664-1
- solid conductor:
- 0.08 2.5 mm / 28 12 AWG
- strip length:
- 12 13 mm / 0.47 0.51 inch
- suitable:
- For 236 Series
- test contact length:
- 10 mm
- weight:
- 1.884 g
- width:
- 5 mm / 0.197 inch
