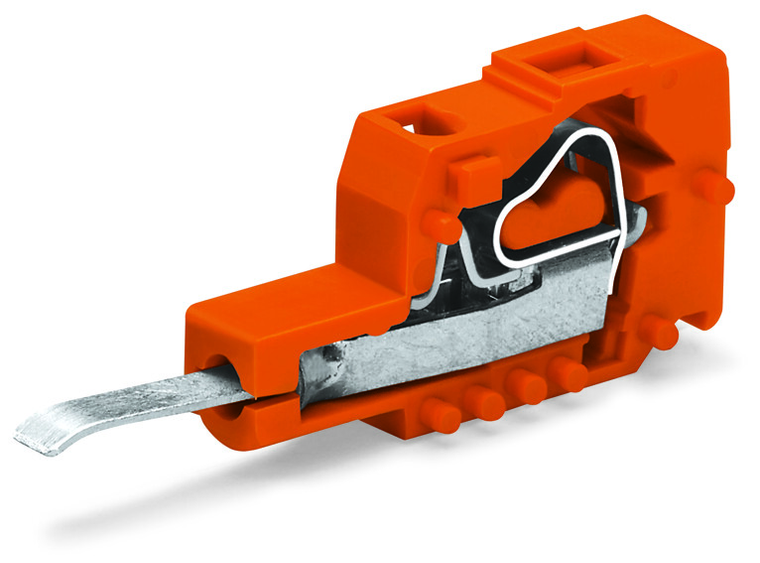

WAGO 231-128 Testing Plug Module with Contact Stud, 5.08 mm Pin Spacing, 2.5 mm², Orange
Wago
$5.83
Testing plug module with contact stud; Pin spacing 5.08 mm / 0.2 in; 2,50 mm²; orange.
The WAGO component equivalent to 231128 is a specific type of electrical connector or terminal block used in various industrial and commercial applications. It is designed to provide secure and reliable connections for electrical wiring, ensuring efficient and safe transmission of electrical signals. This component is known for its durability, ease of installation, and compatibility with a wide range of wire sizes and types, making it a versatile choice for electricians and engineers.
- application:
- Testing without connected conductor
- clamping spring material:
- Chrome nickel spring steel (CrNi)
- color:
- Orange
- connection technology:
- CAGE CLAMP
- contact material:
- Electrolytic copper (ECu)
- contact plating:
- Tin-plated
- country of origin sales organisation germany:
- DE
- depth:
- 36.45 mm / 1.435 inch
- fine stranded conductor:
- 0.08 2.5 mm / 28 12 AWG
- fire load:
- 0.024 MJ
- flammability class per ul94:
- V0
- height:
- 14.3 mm / 0.563 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 2) Overvoltage category III / Pollution degree 2
- limit temperature range:
- -60 +105 C
- material group:
- I
- packaging type:
- Box
- pin spacing:
- 5.08 mm / 0.2 inch
- rated current:
- 0.5 A
- rated surge voltage iii 2:
- 2.5 kV
- rated voltage iii 2:
- 250 V
- ratings per:
- IEC/EN 60664-1
- solid conductor:
- 0.08 2.5 mm / 28 12 AWG
- strip length:
- 12 13 mm / 0.47 0.51 inch
- suitable:
- For 236 Series
- test contact length:
- 10 mm
- weight:
- 1.900 g
- width:
- 5.08 mm / 0.2 inch
