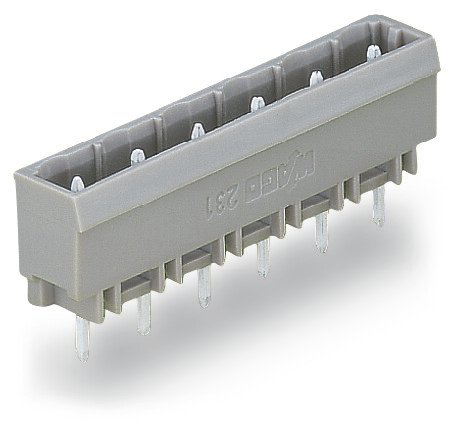

WAGO 231-236/001-000 THT male header; 1.0 x 1.0 mm solder pin; straight; Pin spacing 7.5 mm; 6-pole; gray
Wago
$2.49
THT male header; 1.0 x 1.0 mm solder pin; straight; Pin spacing 7.5 mm; 6-pole.
The WAGO component equivalent to 231236001000 is a specific part used in electrical and electronic applications, known for its reliability and efficiency. This component is designed to facilitate secure and efficient connections in various systems, ensuring optimal performance and safety. It is commonly utilized in industrial automation, building technology, and other sectors requiring robust electrical connections. The WAGO component is recognized for its high-quality standards and compatibility with a wide range of applications, making it a preferred choice for professionals in the field.
- approvals per:
- UL 1059
- color:
- Gray
- connector connection type:
- For PCB
- contact material:
- Electrolytic copper (ECu)
- contact plating:
- Tin-plated
- contact type pluggable connector:
- Male connector/plug
- country of origin sales organisation germany:
- PL
- depth:
- 8.4 mm / 0.331 inch
- drilled hole diameter with tolerance:
- 1.4 (+0.1) mm
- fire load:
- 0.050 MJ
- flammability class per ul94:
- V0
- height:
- 17 mm / 0.669 inch
- height from the surface:
- 12 mm / 0.472 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 2) Overvoltage category III / Pollution degree 2
- limit temperature range:
- -60 +100 C
- locking of plug in connection:
- Without
- material group:
- I
- mating direction to the pcb:
- 90
- mismating protection:
- No
- nominal voltage ii 2:
- 1000 V
- nominal voltage iii 3:
- 500 V
- number of solder pins per potential:
- 1
- packaging type:
- Box
- pcb contact:
- THT
- pin spacing:
- 7.5 mm / 0.295 inch
- pole no:
- 6
- rated current:
- 0
- rated current csa use group b:
- 0.416666666666667
- rated current csa use group d:
- 0.416666666666667
- rated current ul 1977:
- 0.416666666666667
- rated current ul use group b:
- 0.416666666666667
- rated current ul use group d:
- 0.416666666666667
- rated surge voltage ii 2:
- 6 kV
- rated surge voltage iii 2:
- 6 kV
- rated surge voltage iii 3:
- 6 kV
- rated voltage csa use group b:
- 300 V
- rated voltage csa use group d:
- 300 V
- rated voltage iii 2:
- 630 V
- rated voltage ul 1977:
- 600 V
- rated voltage ul use group b:
- 300 V
- rated voltage ul use group d:
- 300 V
- ratings per:
- IEC/EN 60664-1
- safety information 1:
- The MCS MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure
- solder pin arrangement:
- Over the entire male connector (in-line)
- solder pin dimensions:
- 1 x 1 mm
- solder pin length:
- 5 mm
- weight:
- 2.448 g
- width:
- 45.7 mm / 1.799 inch
