Wago

WAGO 231-269/001-000/105-604/997-409 Pack of 170

SKU:

231-269/001-000/105-604/997-409

UPC:

MPN:

231-269/001-000/105-604/997-409

Condition:

New

approvals per:

UL 1059

color:

Black

connector connection type:

For PCB

contact material:

Electrolytic copper (ECu)

contact plating:

Tin-plated

contact type pluggable connector:

Male connector/plug

country of origin sales organisation germany:

DE

depth:

8.4 mm / 0.331 inch

fire load:

0.092 MJ

flammability class per ul94:

V0

height:

14.4 mm / 0.567 inch

height from the surface:

12 mm / 0.472 inch

insulation material:

Polyphthalamide (PPA GF)

legend ratings:

(III / 2) Overvoltage category III / Pollution degree 2

limit temperature range:

-60 +100 C

locking of plug in connection:

Without

material group:

I

mating direction to the pcb:

90

mismating protection:

No

nominal voltage ii 2:

1000 V

nominal voltage iii 3:

500 V

number of solder pins per potential:

1

packaging type:

Bag

pcb contact:

THR

pin spacing:

7.5 mm / 0.295 inch

plated through hole diameter thr:

1.7 (+0.1) mm

pole no:

9

rated current:

16 A

rated current csa use group b:

0.416666666666667

rated current csa use group d:

0.416666666666667

rated current ul 1977:

15 A

rated current ul use group b:

0.416666666666667

rated current ul use group d:

0.416666666666667

rated surge voltage ii 2:

6 kV

rated surge voltage iii 2:

6 kV

rated surge voltage iii 3:

6 kV

rated voltage csa use group b:

300 V

rated voltage csa use group d:

300 V

rated voltage iii 2:

630 V

rated voltage ul 1977:

600 V

rated voltage ul use group b:

300 V

rated voltage ul use group d:

300 V

ratings per:

IEC/EN 60664-1

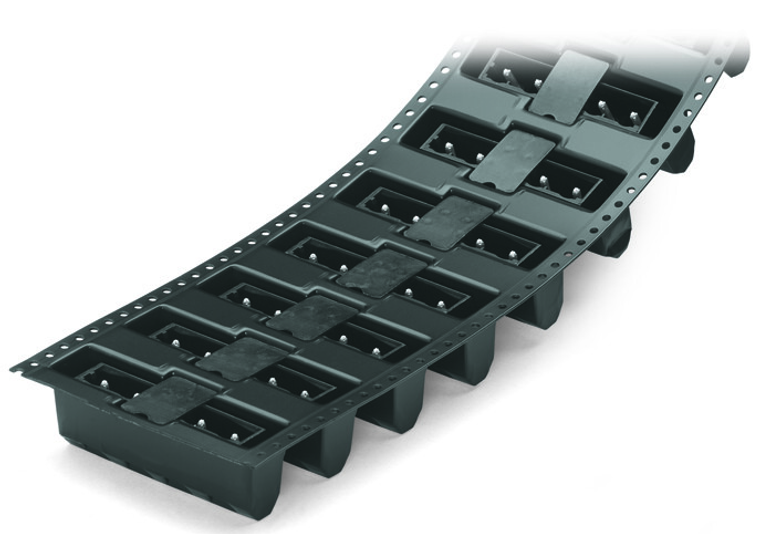

reel diameter of tape and reel packaging:

330 mm

safety information 1:

The MCS MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure

solder pin arrangement:

Over the entire male connector (in-line)

solder pin dimensions:

1.2 x 1.2 mm

solder pin length:

2.4 mm

tape width:

88 mm

weight:

3.711 g

width:

68.2 mm / 2.685 inch
