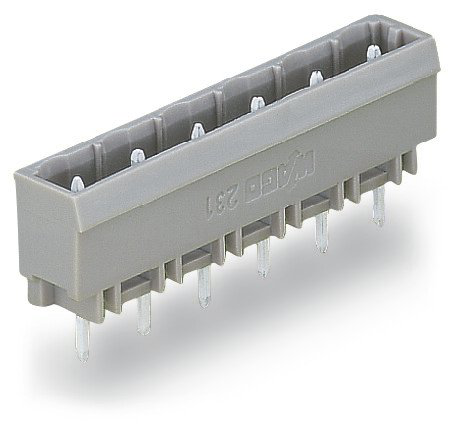

WAGO 231-272/001-000

SKU:

231-272/001-000

UPC:

MPN:

231-272/001-000

Condition:

New

approvals per:

UL 1059

color:

Gray

connector connection type:

For PCB

contact material:

Electrolytic copper (ECu)

contact plating:

Tin-plated

contact type pluggable connector:

Male connector/plug

country of origin sales organisation germany:

DE

depth:

8.4 mm / 0.331 inch

drilled hole diameter with tolerance:

1.7 (+0.1) mm

fire load:

0.093 MJ

flammability class per ul94:

V0

height:

17 mm / 0.669 inch

height from the surface:

12 mm / 0.472 inch

insulation material:

Polyamide (PA66)

legend ratings:

(III / 2) Overvoltage category III / Pollution degree 2

limit temperature range:

-60 +100 C

locking of plug in connection:

Without

material group:

I

mating direction to the pcb:

90

mismating protection:

No

nominal voltage ii 2:

1000 V

nominal voltage iii 3:

500 V

number of solder pins per potential:

1

packaging type:

Box

pcb contact:

THT

pin spacing:

7.5 mm / 0.295 inch

pole no:

12

rated current:

16 A

rated current csa use group b:

15 A

rated current csa use group d:

0.416666666666667

rated current ul 1977:

15 A

rated current ul use group b:

15 A

rated current ul use group d:

0.416666666666667

rated surge voltage ii 2:

6 kV

rated surge voltage iii 2:

6 kV

rated surge voltage iii 3:

6 kV

rated voltage csa use group b:

300 V

rated voltage csa use group d:

300 V

rated voltage iii 2:

630 V

rated voltage ul 1977:

600 V

rated voltage ul use group b:

300 V

rated voltage ul use group d:

300 V

ratings per:

IEC/EN 60664-1

safety information 1:

The MCS MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure

solder pin arrangement:

Over the entire male connector (in-line)

solder pin dimensions:

1.2 x 1.2 mm

solder pin length:

5 mm

weight:

5.570 g

width:

90.7 mm / 3.571 inch
