Wago

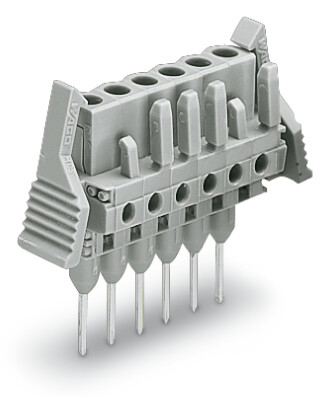

WAGO 232-139/005-000/039-000

SKU:

232-139/005-000/039-000

UPC:

MPN:

232-139/005-000/039-000

Condition:

New

approvals per:

CSA

color:

Gray

connector connection type:

For front-entry rail-mount terminal block

contact material:

Copper alloy

contact plating:

Tin-plated

contact type pluggable connector:

Female connector/socket

country of origin sales organisation germany:

DE

depth:

11.6 mm / 0.457 inch

fire load:

0.193 MJ

flammability class per ul94:

V0

height:

36.1 mm / 1.421 inch

height from the surface:

21.6 mm / 0.85 inch

insulation material:

Polyamide (PA66)

legend ratings:

(III / 2) Overvoltage category III / Pollution degree 2

limit temperature range:

-60 +85 C

locking of plug in connection:

Locking lever

material group:

I

mating direction to the rail mount terminal block:

90

mismating protection:

No

nominal voltage ii 2:

630 V

nominal voltage iii 3:

320 V

packaging type:

Box

pin spacing:

5 mm / 0.197 inch

pole no:

9

rated current:

0

rated current csa use group b:

15 A

rated current csa use group d:

0.416666666666667

rated current ul 1977:

15 A

rated current ul use group b:

15 A

rated current ul use group d:

0.416666666666667

rated surge voltage ii 2:

4 kV

rated surge voltage iii 2:

4 kV

rated surge voltage iii 3:

4 kV

rated voltage csa use group b:

300 V

rated voltage csa use group d:

300 V

rated voltage iii 2:

320 V

rated voltage ul 1977:

600 V

rated voltage ul use group b:

300 V

rated voltage ul use group d:

300 V

ratings per:

IEC/EN 60664-1

safety information 1:

The MCS MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure

weight:

10.332 g

width:

60.8 mm / 2.394 inch
