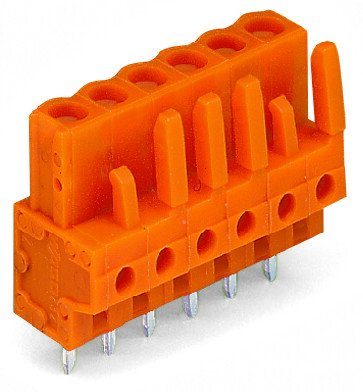

WAGO 232-169

(No reviews yet) Write a Review

Write a Review

WAGO 232-169

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

232-169

UPC:

MPN:

232-169

Condition:

New

approvals per:

CSA

color:

Orange

connector connection type:

For PCB

contact material:

Copper alloy

contact plating:

Tin-plated

contact type pluggable connector:

Female connector/socket

country of origin sales organisation germany:

DE

depth:

11.6 mm / 0.457 inch

drilled hole diameter with tolerance:

1.3 (+0.1) mm

fire load:

0.131 MJ

flammability class per ul94:

V0

height:

23.25 mm / 0.915 inch

height from the surface:

18.25 mm / 0.719 inch

insulation material:

Polyamide (PA66)

legend ratings:

(III / 2) Overvoltage category III / Pollution degree 2

limit temperature range:

-60 +85 C

locking of plug in connection:

Without

material group:

I

mating direction to the pcb:

90

mismating protection:

No

nominal voltage ii 2:

630 V

nominal voltage iii 3:

320 V

number of solder pins per potential:

1

packaging type:

Box

pcb contact:

THT

pin spacing:

5.08 mm / 0.2 inch

pole no:

9

rated current:

0

rated current csa use group b:

15 A

rated current csa use group d:

0.416666666666667

rated current ul 1977:

15 A

rated current ul use group b:

15 A

rated current ul use group d:

0.416666666666667

rated surge voltage ii 2:

4 kV

rated surge voltage iii 2:

4 kV

rated surge voltage iii 3:

4 kV

rated voltage csa use group b:

300 V

rated voltage csa use group d:

300 V

rated voltage iii 2:

320 V

rated voltage ul 1977:

600 V

rated voltage ul use group b:

300 V

rated voltage ul use group d:

300 V

ratings per:

IEC/EN 60664-1

safety information 1:

The MCS MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure

solder pin arrangement:

Over the entire female connector (in-line)

solder pin dimensions:

0.6 x 1 mm

solder pin length:

5 mm

weight:

7.870 g

width:

47.22 mm / 1.859 inch
