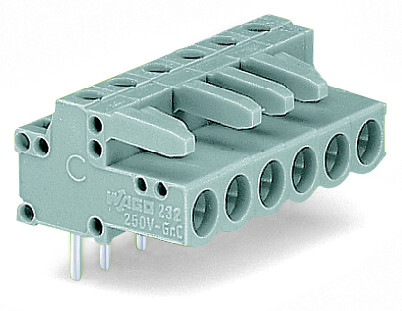

WAGO 232-246 16-Pole Female Connector with Angled Solder Pins
Wago
$12.76
THT female header; 0.6 x 1.0 mm solder pin; angled; Pin spacing 5 mm; 16-pole.
The WAGO component equivalent to 232246 is a specific part used in electrical and automation systems, known for its reliability and efficiency. This component is designed to facilitate secure and easy connections in various applications, ensuring optimal performance and safety. It is commonly used in industrial settings where precise and durable electrical connections are crucial. The WAGO 232246 equivalent is recognized for its high-quality standards and compatibility with a wide range of systems, making it a preferred choice for professionals in the field.
- approvals per:
- CSA
- color:
- Gray
- connector connection type:
- For PCB
- contact material:
- Copper alloy
- contact plating:
- Tin-plated
- contact type pluggable connector:
- Female connector/socket
- country of origin sales organisation germany:
- DE
- depth:
- 18.25 mm / 0.719 inch
- drilled hole diameter with tolerance:
- 1.3 (+0.1) mm
- fire load:
- 0.259 MJ
- flammability class per ul94:
- V0
- height:
- 16.6 mm / 0.654 inch
- height from the surface:
- 11.6 mm / 0.457 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 2) Overvoltage category III / Pollution degree 2
- limit temperature range:
- -60 +85 C
- locking of plug in connection:
- Without
- material group:
- I
- mating direction to the pcb:
- 0
- mismating protection:
- No
- nominal voltage ii 2:
- 630 V
- nominal voltage iii 3:
- 320 V
- number of solder pins per potential:
- 1
- packaging type:
- Box
- pcb contact:
- THT
- pin spacing:
- 5 mm / 0.197 inch
- pole no:
- 16
- rated current:
- 0
- rated current csa use group b:
- 15 A
- rated current csa use group d:
- 0.416666666666667
- rated current ul 1977:
- 15 A
- rated current ul use group b:
- 15 A
- rated current ul use group d:
- 0.416666666666667
- rated surge voltage ii 2:
- 4 kV
- rated surge voltage iii 2:
- 4 kV
- rated surge voltage iii 3:
- 4 kV
- rated voltage csa use group b:
- 300 V
- rated voltage csa use group d:
- 300 V
- rated voltage iii 2:
- 320 V
- rated voltage ul 1977:
- 600 V
- rated voltage ul use group b:
- 300 V
- rated voltage ul use group d:
- 300 V
- ratings per:
- IEC/EN 60664-1
- safety information 1:
- The MCS MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure
- solder pin arrangement:
- Over the entire female connector (in-line)
- solder pin dimensions:
- 0.6 x 1 mm
- solder pin length:
- 5 mm
- weight:
- 14.802 g
- width:
- 81.5 mm / 3.209 inch
