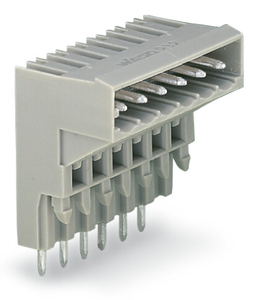

WAGO 232-336 THT male header; 6-pole; 1.0 x 1.0 mm solder pin; angled; 5 mm pin spacing; gray
Wago
$3.91
- Male headers for double-deck assembly provide high-density wiring for wire-toboard connections
- Horizontal PCB mounting
- Double-deck design allows male or female headers with angled solder pins to be placed on the lower deck
- With coding fingers
The WAGO component equivalent to 232336 is a specific part used in electrical and automation systems, known for its reliability and efficiency. This component is typically utilized in various applications to ensure secure and maintenance-free connections. It is designed to meet high standards of performance and safety, making it a preferred choice for professionals in the industry. The equivalent part number indicates that it shares the same specifications and functionality as the original 232336 component, ensuring compatibility and ease of replacement in existing systems.
- approvals per:
- CSA
- color:
- Gray
- connector connection type:
- For PCB
- contact material:
- Electrolytic copper (ECu)
- contact plating:
- Tin-plated
- contact type pluggable connector:
- Male connector/plug
- country of origin sales organisation germany:
- PL
- depth:
- 17 mm / 0.669 inch
- drilled hole diameter with tolerance:
- 1.4 (+0.1) mm
- fire load:
- 0.135 MJ
- flammability class per ul94:
- V0
- height:
- 31 mm / 1.22 inch
- height from the surface:
- 26 mm / 1.024 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 2) Overvoltage category III / Pollution degree 2
- limit temperature range:
- -60 +100 C
- locking of plug in connection:
- Without
- material group:
- I
- mating direction to the pcb:
- 0
- mismating protection:
- No
- nominal voltage ii 2:
- 630 V
- nominal voltage iii 3:
- 320 V
- number of solder pins per potential:
- 1
- packaging type:
- Box
- pcb contact:
- THT
- pin spacing:
- 5 mm / 0.197 inch
- pole no:
- 6
- rated current:
- 0
- rated current csa use group b:
- 0.416666666666667
- rated current csa use group d:
- 0.416666666666667
- rated current ul 1977:
- 0.416666666666667
- rated current ul use group b:
- 0.416666666666667
- rated current ul use group d:
- 0.416666666666667
- rated surge voltage ii 2:
- 4 kV
- rated surge voltage iii 2:
- 4 kV
- rated surge voltage iii 3:
- 4 kV
- rated voltage csa use group b:
- 300 V
- rated voltage csa use group d:
- 300 V
- rated voltage iii 2:
- 320 V
- rated voltage ul 1977:
- 600 V
- rated voltage ul use group b:
- 300 V
- rated voltage ul use group d:
- 300 V
- ratings per:
- IEC/EN 60664-1
- safety information 1:
- The MCS MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure
- solder pin arrangement:
- Over the entire male connector (in-line)
- solder pin dimensions:
- 1 x 1 mm
- solder pin length:
- 5 mm
- weight:
- 6.528 g
- width:
- 33.2 mm / 1.307 inch
