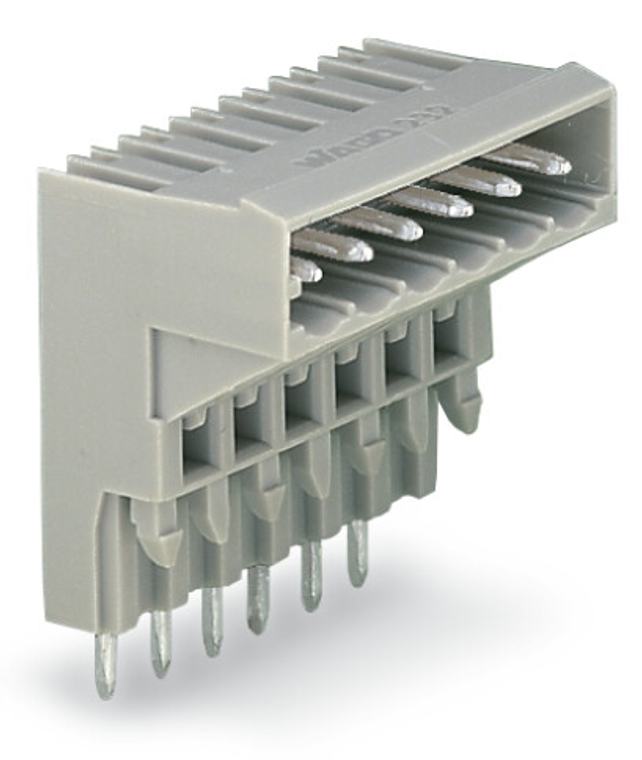

WAGO 232-338 THT male header for double-deck assembly; 1.0 x 1.0 mm solder pin; angled; Pin spacing 5 mm; 8-pole; gray

SKU:

232-338

UPC:

MPN:

51142966

Condition:

New

approvals per:

UL 1059

color:

Gray

connector connection type:

For PCB

contact material:

Electrolytic copper (ECu)

contact plating:

Tin-plated

contact type pluggable connector:

Male connector/plug

country of origin sales organisation germany:

PL

depth:

17 mm / 0.669 inch

drilled hole diameter with tolerance:

1.4 (+0.1) mm

fire load:

0.126 MJ

flammability class per ul94:

V0

height:

31 mm / 1.22 inch

height from the surface:

26 mm / 1.024 inch

insulation material:

Polyamide (PA66)

legend ratings:

(III / 2) Overvoltage category III / Pollution degree 2

limit temperature range:

-60 +100 C

locking of plug in connection:

Without

material group:

I

mating direction to the pcb:

0

mismating protection:

No

nominal voltage ii 2:

630 V

nominal voltage iii 3:

320 V

number of solder pins per potential:

1

packaging type:

Box

pcb contact:

THT

pin spacing:

5 mm / 0.197 inch

pole no:

8

rated current:

0

rated current csa use group b:

0.416666666666667

rated current csa use group d:

0.416666666666667

rated current ul 1977:

0.416666666666667

rated current ul use group b:

0.416666666666667

rated current ul use group d:

0.416666666666667

rated surge voltage ii 2:

4 kV

rated surge voltage iii 2:

4 kV

rated surge voltage iii 3:

4 kV

rated voltage csa use group b:

300 V

rated voltage csa use group d:

300 V

rated voltage iii 2:

320 V

rated voltage ul 1977:

600 V

rated voltage ul use group b:

300 V

rated voltage ul use group d:

300 V

ratings per:

IEC/EN 60664-1

safety information 1:

The MCS MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure

solder pin arrangement:

Over the entire male connector (in-line)

solder pin dimensions:

1 x 1 mm

solder pin length:

5 mm

weight:

6.930 g

width:

43.2 mm / 1.701 inch
