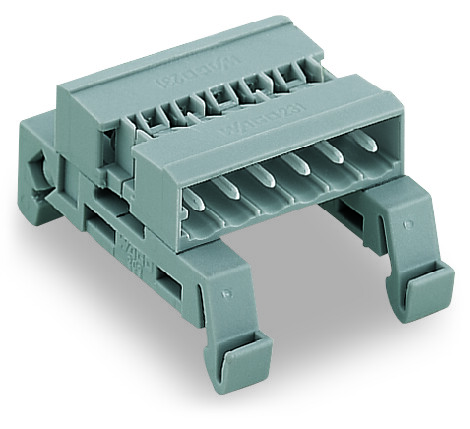

WAGO 232-506/007-000 Double Pin Header, 6-Pole, 5 mm Pin Spacing, DIN-35 Rail Mounting, Gray
Wago
$6.20
Double pin header; DIN-35 rail mounting; Pin spacing 5 mm; 6-pole
- Allow MCS Female Connectors fitted with wire harness or cable assembly to be plugged together
- Adapter for DIN-35 rail mounting
- Coding via coding keys on both sides
The WAGO component equivalent to 232506007000 is a specific type of electrical connector or terminal block used for various wiring applications. It is designed to provide secure and reliable connections in electrical circuits, ensuring efficient conductivity and safety. This component is commonly used in industrial, commercial, and residential electrical installations, offering features such as easy installation, durability, and compatibility with different wire sizes and types.
- approvals per:
- CSA
- color:
- Gray
- connector connection type:
- For pluggable connector
- contact material:
- Electrolytic copper (ECu)
- contact plating:
- Tin-plated
- contact type pluggable connector:
- Male connector/plug
- country of origin sales organisation germany:
- DE
- depth:
- 42.5 mm / 1.673 inch
- fire load:
- 0.162 MJ
- flammability class per ul94:
- V0
- height from upper edge of din rail:
- 15 mm / 0.591 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 2) Overvoltage category III / Pollution degree 2
- limit temperature range:
- -60 +100 C
- locking of plug in connection:
- Without
- material group:
- I
- mismating protection:
- No
- mounting type:
- DIN-35 rail
- nominal voltage ii 2:
- 630 V
- nominal voltage iii 3:
- 250 V
- packaging type:
- Box
- pin spacing:
- 5 mm / 0.197 inch
- pole no:
- 6
- rated current:
- 0
- rated current csa use group b:
- 15 A
- rated current csa use group d:
- 0.416666666666667
- rated current ul 1977:
- 15 A
- rated current ul use group b:
- 15 A
- rated current ul use group d:
- 0.416666666666667
- rated surge voltage ii 2:
- 4 kV
- rated surge voltage iii 2:
- 4 kV
- rated surge voltage iii 3:
- 4 kV
- rated voltage csa use group b:
- 300 V
- rated voltage csa use group d:
- 300 V
- rated voltage iii 2:
- 320 V
- rated voltage ul 1977:
- 600 V
- rated voltage ul use group b:
- 300 V
- rated voltage ul use group d:
- 300 V
- ratings note:
- Notice: Male connectors must not be live when disconnected!
- ratings per:
- IEC/EN 60664-1
- safety information 1:
- The MCS MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure
- weight:
- 7.196 g
- width:
- 33.2 mm / 1.307 inch
