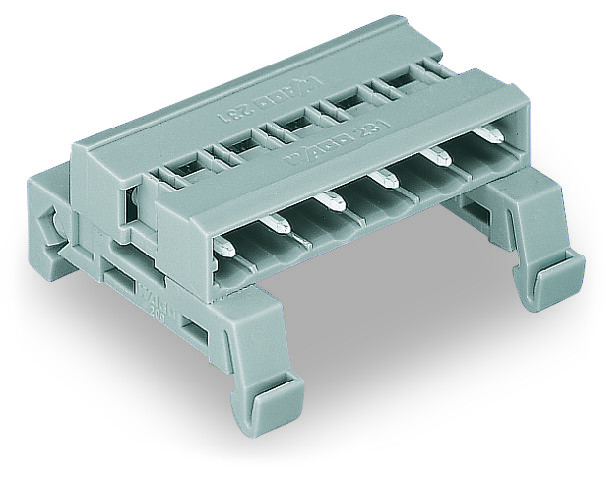

WAGO 232-562/007-000 Double pin header; DIN-35 rail mounting; Pin spacing 7.5 mm; 2-pole; gray
Wago
$3.84
Double pin header; DIN-35 rail mounting; 2-pole; Pin spacing 7.5 mm; gray.
The WAGO component equivalent to 232562007000 is a specific type of electrical connector or terminal block used in various industrial and automation applications. It is designed to provide reliable and secure connections for electrical wiring, ensuring efficient signal transmission and power distribution. This component is known for its durability, ease of installation, and compatibility with a wide range of electrical systems, making it a popular choice among engineers and technicians for both new installations and maintenance tasks.
- approvals per:
- CSA
- color:
- Gray
- connector connection type:
- For pluggable connector
- contact material:
- Electrolytic copper (ECu)
- contact plating:
- Tin-plated
- contact type pluggable connector:
- Male connector/plug
- country of origin sales organisation germany:
- DE
- depth:
- 42.5 mm / 1.673 inch
- fire load:
- 0.126 MJ
- flammability class per ul94:
- V0
- height from upper edge of din rail:
- 15 mm / 0.591 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 2) Overvoltage category III / Pollution degree 2
- limit temperature range:
- -60 +100 C
- locking of plug in connection:
- Without
- material group:
- I
- mismating protection:
- No
- mounting type:
- DIN-35 rail
- nominal voltage ii 2:
- 1000 V
- nominal voltage iii 3:
- 500 V
- packaging type:
- Box
- pin spacing:
- 7.5 mm / 0.295 inch
- pole no:
- 2
- rated current:
- 0
- rated current csa use group b:
- 15 A
- rated current csa use group d:
- 0.416666666666667
- rated current ul 1977:
- 15 A
- rated current ul use group b:
- 15 A
- rated current ul use group d:
- 0.416666666666667
- rated surge voltage ii 2:
- 6 kV
- rated surge voltage iii 2:
- 6 kV
- rated surge voltage iii 3:
- 6 kV
- rated voltage csa use group b:
- 300 V
- rated voltage csa use group d:
- 300 V
- rated voltage iii 2:
- 630 V
- rated voltage ul 1977:
- 600 V
- rated voltage ul use group b:
- 300 V
- rated voltage ul use group d:
- 300 V
- ratings note:
- Notice: Male connectors must not be live when disconnected!
- ratings per:
- IEC/EN 60664-1
- safety information 1:
- The MCS MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure
- weight:
- 4.888 g
- width:
- 15.7 mm / 0.618 inch
