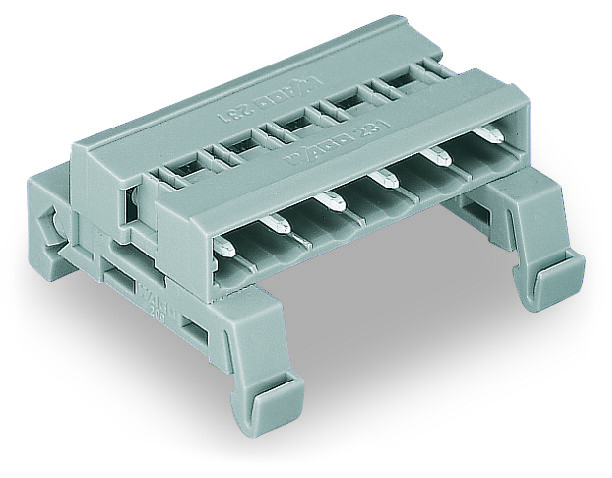

WAGO 232-563/007-000 Double Pin Header, 3-Pole, 7.5 mm Pin Spacing, DIN-35 Rail Mounting, Gray
Wago
$4.52
Double pin header; DIN-35 rail mounting; Pin spacing 7.5 mm; 3-pole
- Allow MCS Female Connectors fitted with wire harness or cable assembly to be plugged together
- Adapter for DIN-35 rail mounting
- Coding via coding keys on both sides
The WAGO component equivalent to 232563007000 is a specific part used in electrical and electronic applications, known for its reliability and efficiency. This component is typically utilized in various industrial and automation systems, providing secure and maintenance-free connections. It is designed to meet high standards of performance and safety, ensuring optimal functionality in demanding environments. The equivalent part offers similar specifications and compatibility, making it a suitable replacement for the original WAGO component.
- approvals per:
- UL 1059
- color:
- Gray
- connector connection type:
- For pluggable connector
- contact material:
- Electrolytic copper (ECu)
- contact plating:
- Tin-plated
- contact type pluggable connector:
- Male connector/plug
- country of origin sales organisation germany:
- DE
- depth:
- 42.5 mm / 1.673 inch
- fire load:
- 0.142 MJ
- flammability class per ul94:
- V0
- height from upper edge of din rail:
- 15 mm / 0.591 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 2) Overvoltage category III / Pollution degree 2
- limit temperature range:
- -60 +100 C
- locking of plug in connection:
- Without
- material group:
- I
- mismating protection:
- No
- mounting type:
- DIN-35 rail
- nominal voltage ii 2:
- 1000 V
- nominal voltage iii 3:
- 500 V
- packaging type:
- Box
- pin spacing:
- 7.5 mm / 0.295 inch
- pole no:
- 3
- rated current:
- 0
- rated current csa use group b:
- 15 A
- rated current csa use group d:
- 0.416666666666667
- rated current ul 1977:
- 15 A
- rated current ul use group b:
- 15 A
- rated current ul use group d:
- 0.416666666666667
- rated surge voltage ii 2:
- 6 kV
- rated surge voltage iii 2:
- 6 kV
- rated surge voltage iii 3:
- 6 kV
- rated voltage csa use group b:
- 300 V
- rated voltage csa use group d:
- 300 V
- rated voltage iii 2:
- 630 V
- rated voltage ul 1977:
- 600 V
- rated voltage ul use group b:
- 300 V
- rated voltage ul use group d:
- 300 V
- ratings note:
- Notice: Male connectors must not be live when disconnected!
- ratings per:
- IEC/EN 60664-1
- safety information 1:
- The MCS MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure
- weight:
- 5.675 g
- width:
- 23.2 mm / 0.913 inch
