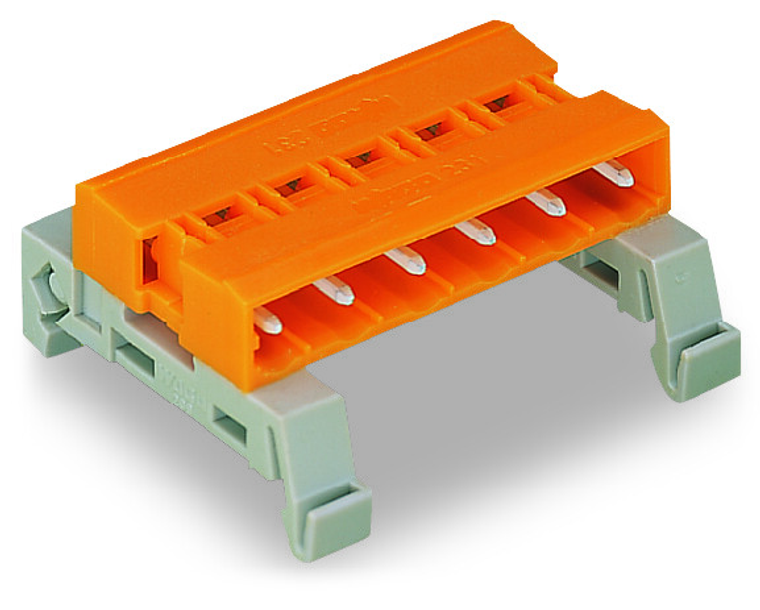

WAGO 232-587/007-000 Double pin header; DIN-35 rail mounting; Pin spacing 7.62 mm; 7-pole; orange
Double pin header; DIN-35 rail mounting; 7-pole; Pin spacing 7.62 mm; orange.
The WAGO component equivalent to 232587007000 is a specific part used in electrical and automation systems. It is designed to provide reliable connectivity and functionality within these systems, ensuring efficient performance and integration. This component is part of WAGO's extensive range of products known for their quality and durability in various industrial applications.
- approvals per:
- CSA
- color:
- Orange
- connector connection type:
- For pluggable connector
- contact material:
- Electrolytic copper (ECu)
- contact plating:
- Tin-plated
- contact type pluggable connector:
- Male connector/plug
- country of origin sales organisation germany:
- DE
- depth:
- 42.5 mm / 1.673 inch
- fire load:
- 0.208 MJ
- flammability class per ul94:
- V0
- height from upper edge of din rail:
- 15 mm / 0.591 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 2) Overvoltage category III / Pollution degree 2
- limit temperature range:
- -60 +100 C
- locking of plug in connection:
- Without
- material group:
- I
- mismating protection:
- No
- mounting type:
- DIN-35 rail
- nominal voltage ii 2:
- 1000 V
- nominal voltage iii 3:
- 500 V
- packaging type:
- Box
- pin spacing:
- 7.62 mm / 0.3 inch
- pole no:
- 7
- rated current:
- 0
- rated current csa use group b:
- 15 A
- rated current csa use group d:
- 0.416666666666667
- rated current ul 1977:
- 15 A
- rated current ul use group b:
- 15 A
- rated current ul use group d:
- 0.416666666666667
- rated surge voltage ii 2:
- 6 kV
- rated surge voltage iii 2:
- 6 kV
- rated surge voltage iii 3:
- 6 kV
- rated voltage csa use group b:
- 300 V
- rated voltage csa use group d:
- 300 V
- rated voltage iii 2:
- 630 V
- rated voltage ul 1977:
- 600 V
- rated voltage ul use group b:
- 300 V
- rated voltage ul use group d:
- 300 V
- ratings note:
- Notice: Male connectors must not be live when disconnected!
- ratings per:
- IEC/EN 60664-1
- safety information 1:
- The MCS MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure
- weight:
- 8.983 g
- width:
- 53.72 mm / 2.115 inch
