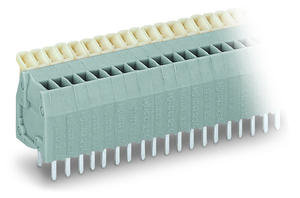

WAGO 234-202 PCB Terminal Block; Push-Button; 2-Pole; 0.5 mm²; 2.5 mm Pin Spacing; CAGE CLAMP®; Gray
Wago
$1.32
PCB terminal block; push-button; 0.5 mm²; Pin spacing 2.5 mm; 2-pole; CAGE CLAMP; 0,50 mm²; gray.
The WAGO component equivalent to 234202 is a specific type of electrical connector or terminal block used in various industrial and commercial applications. It is designed to provide secure and reliable connections for electrical wiring, ensuring efficient and safe transmission of electrical signals. This component is known for its ease of use, durability, and compatibility with a wide range of wire sizes and types, making it a popular choice among electricians and engineers for building and maintaining electrical systems.
- actuation type:
- Push-button
- approvals per:
- UL 1059
- clamping spring material:
- Chrome nickel spring steel (CrNi)
- color:
- Gray
- conductor connection direction to pcb:
- 90
- connection technology:
- CAGE CLAMP
- contact material:
- Electrolytic copper (ECu)
- contact plating:
- Tin-plated
- country of origin sales organisation germany:
- CH
- depth:
- 14.4 mm / 0.567 inch
- drilled hole diameter with tolerance:
- 1.1 (+0.1) mm
- fine stranded conductor:
- 0.08 0.5 mm / 28 20 AWG
- fine stranded conductor with insulated ferrule:
- 0.25 mm
- fine stranded conductor with uninsulated ferrule:
- 0.25 mm
- fire load:
- 0.018 MJ
- flammability class per ul94:
- V0
- height:
- 18 mm / 0.709 inch
- height from the surface:
- 14 mm / 0.551 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 2) Overvoltage category III / Pollution degree 2
- limit temperature range:
- -60 +105 C
- material group:
- I
- nominal voltage ii 2:
- 320 V
- nominal voltage iii 3:
- 63 V
- number of solder pins per potential:
- 2
- packaging type:
- Box
- pcb contact:
- THT
- pin spacing:
- 2.5 mm / 0.098 inch
- pole no:
- 2
- rated current:
- 0.25
- rated current csa use group b:
- 0.166666666666667
- rated current ul use group b:
- 0.166666666666667
- rated surge voltage ii 2:
- 2.5 kV
- rated surge voltage iii 2:
- 2.5 kV
- rated surge voltage iii 3:
- 2.5 kV
- rated voltage csa use group b:
- 150 V
- rated voltage iii 2:
- 160 V
- rated voltage ul use group b:
- 150 V
- ratings per:
- IEC/EN 60664-1
- solder pin arrangement:
- Over the entire terminal strip (in-line)
- solder pin dimensions:
- 0.5 x 0.75 mm
- solder pin length:
- 4 mm
- solid conductor:
- 0.08 0.5 mm / 28 20 AWG
- strip length:
- 5 6 mm / 0.2 0.24 inch
- weight:
- 1.127 g
- width:
- 7.2 mm / 0.283 inch
