Wago

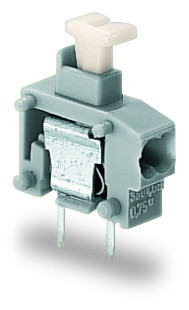

WAGO 235-716/331-000 Pack of 100

SKU:

235-716/331-000

UPC:

MPN:

235-716/331-000

Condition:

New

actuation type:

Push-button

approvals per:

CSA

clamping spring material:

Chrome nickel spring steel (CrNi)

color:

Orange

conductor connection direction to pcb:

0

connection technology:

PUSH WIRE

contact material:

Electrolytic copper (ECu)

contact plating:

Tin-plated

country of origin sales organisation germany:

CH

depth:

12.5 mm / 0.492 inch

drilled hole diameter with tolerance:

1 (+0.1) mm

fire load:

0.014 MJ

flammability class per ul94:

V0

height:

19.1 mm / 0.752 inch

height from the surface:

15.5 mm / 0.61 inch

insulation material:

Polyamide (PA66)

legend ratings:

(III / 2) Overvoltage category III / Pollution degree 2

limit temperature range:

-60 +105 C

material group:

I

nominal voltage ii 2:

630 V

nominal voltage iii 3:

250 V

number of solder pins per potential:

2

packaging type:

Box

pcb contact:

THT

pin spacing:

5/5.08 mm / 0.197/0.2 inch

pole no:

1

rated current:

0.416666666666667

rated current csa use group b:

0.416666666666667

rated current ul use group b:

0.416666666666667

rated current ul use group d:

0.416666666666667

rated surge voltage ii 2:

4 kV

rated surge voltage iii 2:

4 kV

rated surge voltage iii 3:

4 kV

rated voltage csa use group b:

300 V

rated voltage iii 2:

320 V

rated voltage ul use group b:

300 V

rated voltage ul use group d:

300 V

ratings per:

IEC/EN 60664-1

solder pin arrangement:

Within the terminal block (in-line)

solder pin dimensions:

0.8 x 0.4 mm

solder pin length:

3.6 mm

solid conductor:

0.2 0.475 mm / 24 18 AWG

strip length:

9 10 mm / 0.35 0.39 inch

weight:

0.762 g

width:

6.5 mm / 0.256 inch
