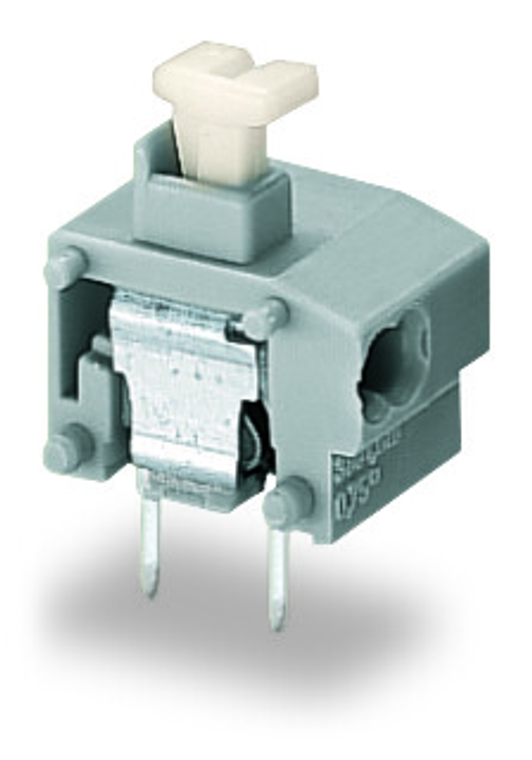

WAGO 235-851/332-000 Stackable 2-Conductor PCB Terminal Block, 0.75 mm², 10/10.16 mm Pitch, 1-Pole, Push-Wire®, Gray, Pack of 100
Wago
$46.10
Stackable 2-conductor PCB terminal block push-button 0.75 mm Pin spacing 10/10.16 mm 1-pole, gray.
The WAGO component equivalent to 235851332000 is a specific part used in electrical and automation systems. It is designed to provide reliable and efficient connectivity solutions, ensuring secure and stable connections in various applications. This component is known for its high quality, durability, and compatibility with other WAGO products, making it a preferred choice for professionals in the industry.
- actuation type:
- Push-button
- approvals per:
- UL 1059
- clamping spring material:
- Chrome nickel spring steel (CrNi)
- color:
- Gray
- conductor connection direction to pcb:
- 0
- connection technology:
- PUSH WIRE
- contact material:
- Electrolytic copper (ECu)
- contact plating:
- Tin-plated
- country of origin sales organisation germany:
- CN
- depth:
- 12.5 mm / 0.492 inch
- drilled hole diameter with tolerance:
- 1 (+0.1) mm
- fire load:
- 0.023 MJ
- flammability class per ul94:
- V0
- height:
- 19.1 mm / 0.752 inch
- height from the surface:
- 15.5 mm / 0.61 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 2) Overvoltage category III / Pollution degree 2
- limit temperature range:
- -60 +105 C
- material group:
- I
- nominal voltage ii 2:
- 1000 V
- nominal voltage iii 3:
- 630 V
- number of solder pins per potential:
- 2
- packaging type:
- Box
- pcb contact:
- THT
- pin spacing:
- 10/10.16 mm / 0.394/0.4 inch
- pole no:
- 1
- rated current:
- 0.416666666666667
- rated current csa use group b:
- 0.416666666666667
- rated current ul use group b:
- 0.416666666666667
- rated current ul use group d:
- 0.416666666666667
- rated surge voltage ii 2:
- 6 kV
- rated surge voltage iii 2:
- 6 kV
- rated surge voltage iii 3:
- 8 kV
- rated voltage csa use group b:
- 300 V
- rated voltage iii 2:
- 500 V
- rated voltage ul use group b:
- 300 V
- rated voltage ul use group d:
- 300 V
- ratings per:
- IEC/EN 60664-1
- solder pin arrangement:
- Within the terminal block (in-line)
- solder pin dimensions:
- 0.8 x 0.4 mm
- solder pin length:
- 3.6 mm
- solid conductor:
- 0.2 0.75 mm / 24 18 AWG
- strip length:
- 9 10 mm / 0.35 0.39 inch
- weight:
- 1.047 g
- width:
- 11.5 mm / 0.453 inch
