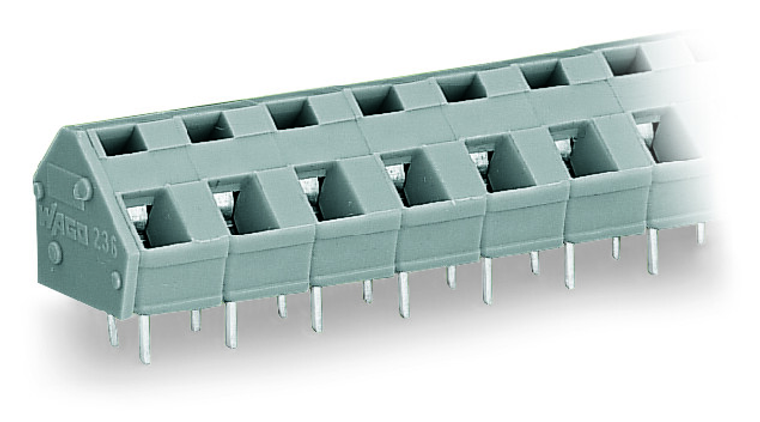

WAGO 236-506/000-009/999-950 PCB terminal block, 6-pole, 2.5 mm², 7.5/7.62 mm pin spacing, light gray, suitable for Ex-e applications, CAGE CLAMP® connection, commoning option
Wago
$6.20
PCB terminal block; 2.5 mm²; Pin spacing 7.5/7.62 mm; 6-pole; suitable for Ex-e applications; CAGE CLAMP; commoning option; 2,50 mm²; light gray.
The WAGO component equivalent to 236506000009999950 is a specific part or product within the WAGO catalog, likely identified by its unique part number for easy reference and procurement. This component is used in various electrical and automation applications, ensuring compatibility and functionality within WAGO's extensive range of products. It is essential for users to reference the correct part number to ensure they receive the appropriate component for their specific needs.
- actuation type:
- Operating tool
- clamping spring material:
- Chrome nickel spring steel (CrNi)
- color:
- Light gray
- conductor connection direction to pcb:
- 45
- connection technology:
- CAGE CLAMP
- contact material:
- Electrolytic copper (ECu)
- contact plating:
- Tin-plated
- country of origin sales organisation germany:
- CH
- depth:
- 14 mm / 0.551 inch
- drilled hole diameter with tolerance:
- 1.1 (+0.1) mm
- fine stranded conductor:
- 0.08 2.5 mm / 28 12 AWG
- fine stranded conductor with insulated ferrule:
- 0.25 1.5 mm
- fine stranded conductor with uninsulated ferrule:
- 0.25 1.5 mm
- fire load:
- 0.112 MJ
- flammability class per ul94:
- V0
- height:
- 17 mm / 0.669 inch
- height from the surface:
- 13 mm / 0.512 inch
- insulation material:
- Polyamide (PA66)
- limit temperature range:
- -60 +105 C
- material group:
- I
- note conductor cross section:
- 12 AWG: THHN, THWN
- number of solder pins per potential:
- 2
- packaging type:
- Box
- pcb contact:
- THT
- pin spacing:
- 7.5/7.62 mm / 0.295/0.3 inch
- pole no:
- 6
- rated current ex e ii:
- 16 A
- rated voltage en ex e ii:
- 275 V
- ratings per:
- ATEX: PTB 06 ATEX 1061 U / IECEx: PTB 06.0042 U
- solder pin arrangement:
- Over the entire terminal strip (in-line)
- solder pin dimensions:
- 0.7 x 0.7 mm
- solder pin length:
- 4 mm
- solid conductor:
- 0.08 2.5 mm / 28 12 AWG
- strip length:
- 5 6 mm / 0.2 0.24 inch
- weight:
- 6.646 g
- width:
- 47.3 mm / 1.862 inch
