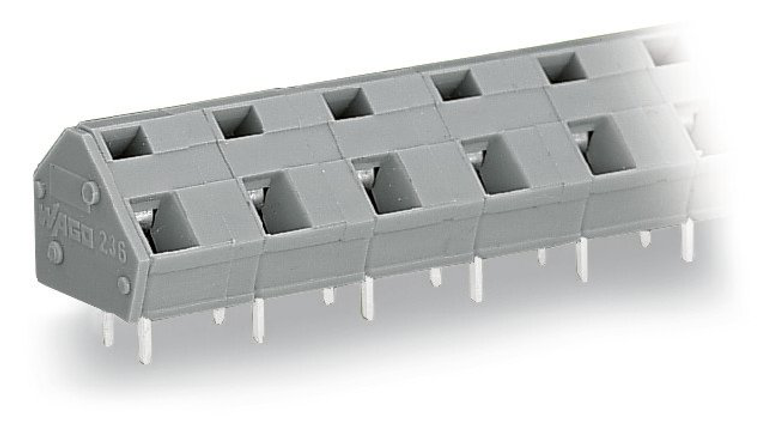

WAGO 236-606/000-009/999-950 PCB terminal block; 2.5 mm²; 6-pole; 10/10.16 mm pin spacing; suitable for Ex-e applications; CAGE CLAMP; commoning option; light gray
Wago
$6.49
PCB terminal block; 2.5 mm²; Pin spacing 10/10.16 mm; 6-pole; suitable for Ex-e applications; CAGE CLAMP; commoning option; 2,50 mm²; light gray.
The WAGO component equivalent to 236606000009999950 is a specific part or product within the WAGO catalog, likely used in electrical or automation applications. This component is identified by a unique code, which helps in accurately locating and referencing it for purchase, installation, or maintenance purposes. The exact specifications, features, and applications of this component would be detailed in WAGO's product documentation or catalog.
- actuation type:
- Operating tool
- clamping spring material:
- Chrome nickel spring steel (CrNi)
- color:
- Light gray
- conductor connection direction to pcb:
- 45
- connection technology:
- CAGE CLAMP
- contact material:
- Electrolytic copper (ECu)
- contact plating:
- Tin-plated
- country of origin sales organisation germany:
- CH
- depth:
- 14 mm / 0.551 inch
- drilled hole diameter with tolerance:
- 1.1 (+0.1) mm
- fine stranded conductor:
- 0.08 2.5 mm / 28 12 AWG
- fine stranded conductor with insulated ferrule:
- 0.25 1.5 mm
- fine stranded conductor with uninsulated ferrule:
- 0.25 1.5 mm
- fire load:
- 0.148 MJ
- flammability class per ul94:
- V0
- height:
- 17 mm / 0.669 inch
- height from the surface:
- 13 mm / 0.512 inch
- insulation material:
- Polyamide (PA66)
- limit temperature range:
- -60 +105 C
- material group:
- I
- note conductor cross section:
- 12 AWG: THHN, THWN
- number of solder pins per potential:
- 2
- packaging type:
- Box
- pcb contact:
- THT
- pin spacing:
- 10/10.16 mm / 0.394/0.4 inch
- pole no:
- 6
- rated current ex e ii:
- 16 A
- rated voltage en ex e ii:
- 440 V
- ratings per:
- ATEX: PTB 06 ATEX 1061 U / IECEx: PTB 06.0042 U
- solder pin arrangement:
- Over the entire terminal strip (in-line)
- solder pin dimensions:
- 0.7 x 0.7 mm
- solder pin length:
- 4 mm
- solid conductor:
- 0.08 2.5 mm / 28 12 AWG
- strip length:
- 5 6 mm / 0.2 0.24 inch
- weight:
- 7.792 g
- width:
- 62.3 mm / 2.453 inch
