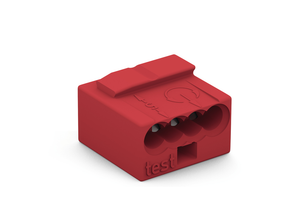

| Description | MICRO PUSH WIRE connector for junction boxes; 4-conductor terminal block | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Remarks | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Item properties | Miscellaneous
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
The WAGO 243 series 4-wire connector is designed for solid conductors with a diameter of 0.5mm or for wires ranging from #26AWG to #24AWG. It features PUSH WIRE spring connections, is rated for a current of 6A according to IEC standards, and comes in a clear/transparent color.
- actuation type:
- Push-in
- color:
- Transparent
- conductor diameter:
- 0.4 0.5 mm / 26 24 AWG
- connectable conductor materials:
- Copper
- connection technology:
- PUSH WIRE
- continuous operating temperature:
- 105 C
- country of origin sales organisation germany:
- DE
- cover color:
- Light gray
- depth:
- 10 mm / 0.394 inch
- fire load:
- 0.013 MJ
- height:
- 6.8 mm / 0.268 inch
- legend ratings:
- (II / 2) Overvoltage category II / Pollution degree 2
- nominal voltage ii 2:
- 100 V
- packaging type:
- Box
- rated current:
- 0.25
- rated surge voltage ii 2:
- 1.5 kV
- ratings per:
- EN 60664
- solid conductor:
- 26 24 AWG
- strip length:
- 5 6 mm / 0.2 0.24 inch
- surrounding air temperature operation:
- 60 C
- weight:
- 0.810 g
- width:
- 10 mm / 0.394 inch
- wiring direction:
- Side-entry wiring
