Wago

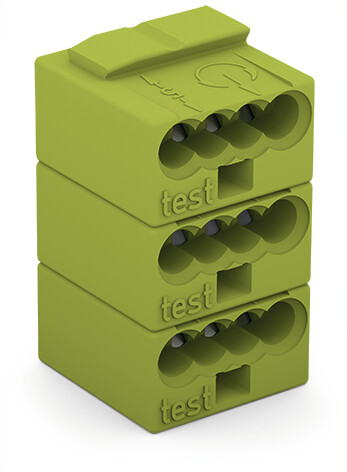

WAGO 243-747 Pack of 50

SKU:

243-747

UPC:

MPN:

243-747

Condition:

New

approvals per:

CSA

clamping spring material:

Copper alloy

color:

Light green

conductor connection direction to pcb:

0

conductor diameter:

0.5 ƒƒ‡ª 1 mm / 24 ƒƒ‡ª 18 AWG

connectable conductor materials:

Copper

connection technology:

PUSH WIRE«

connector connection type:

For PCB

contact material:

Electrolytic copper (ECu)

contact plating:

Tin-plated

contact type pluggable connector:

Female connector/socket

country of origin sales organisation germany:

DE

depth:

10.5 mm / 0.413 inch

drilled hole diameter with tolerance:

1.2 (-0.05 ƒƒ‡ª +0.05) mm

fire load:

0.084 MJ

flammability class per ul94:

V0

height:

10 mm / 0.394 inch

insulation material:

Polyamide (PA66)

legend ratings:

(III / 2) ƒƒ«ƒƒ– Overvoltage category III / Pollution degree 2

limit temperature range:

-60 ƒƒ‡ª +105 C

material group:

I

mating direction to the pcb:

90

nominal voltage ii 2:

630 V

nominal voltage iii 3:

250 V

packaging type:

Box

pin spacing:

5.75 mm / 0.226 inch

pole no:

7

rated current:

0.25

rated current csa use group b:

0.291666666666667

rated current csa use group d:

0.291666666666667

rated current ul use group b:

0.291666666666667

rated current ul use group d:

0.291666666666667

rated surge voltage ii 2:

4 kV

rated surge voltage iii 2:

4 kV

rated surge voltage iii 3:

4 kV

rated voltage csa use group b:

150 V

rated voltage csa use group d:

150 V

rated voltage iii 2:

320 V

rated voltage ul use group b:

150 V

rated voltage ul use group d:

150 V

ratings per:

IEC/EN 60664-1

solder pin diameter:

1 mm

solder pin length:

4.5 mm

solid conductor:

0.5 ƒƒ‡ª 1 mm / 24 ƒƒ‡ª 18 AWG

strip length:

5 ƒƒ‡ª 6 mm / 0.2 ƒƒ‡ª 0.24 inch

weight:

5.229 g

width:

40 mm / 1.575 inch
