Miniature WSB Quick marking system; Horizontal marking; K (100x); Marker width 5 mm; 10 strips with 10 markers per card; Consecutive numbers each strip.

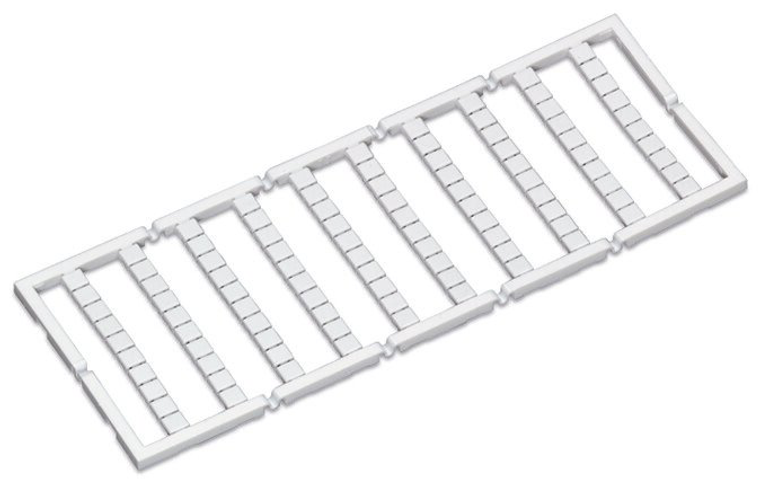

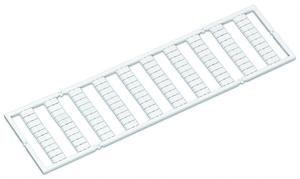

The Labeled Mini-WSB marking card from WAGO's 248 series is designed for horizontal marking and features the letter "K." It comes in white color and has a snap-on mounting mechanism. Each card contains 100 labels, organized into 10 strips with 10 labels per strip. These labels are compatible with 5mm-wide terminal blocks and are equivalent to the 248452 model.
- color:
- White
- country of origin sales organisation germany:
- DE
- fire load:
- 0.201 MJ
- marker strip width:
- 5 mm
- marker width:
- 5 mm
- marking:
- K
- marking color:
- Black
- marking direction:
- Horizontal marking
- marking number:
- 100
- marking type:
- Symbol
- packaging type:
- Box
- pre assembly:
- 10 strips with 10 markers per card
- representation of the imprint:
- Consecutive symbols each strip
- smear resistance:
- EN 60998-1:2004
- uv resistance:
- EN 60068-2-5:2010 Procedure B
- weight:
- 6.250 g
