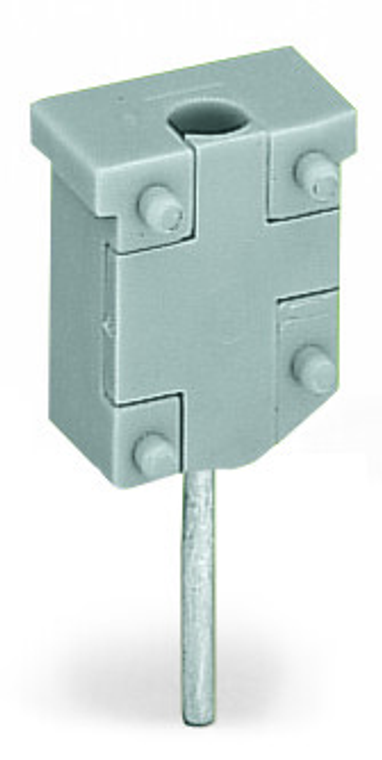

Test plug module; without locking device; modular; for 2-conductor terminal blocks.
The WAGO 249 series modular test plug is a 1-pole (1P) device with a rated test current of 0.5A. It is gray in color and has a width of 7mm. This test plug is compatible with 2-conductor terminal blocks and is equivalent to the model 249137.
- color:
- Gray
- country of origin sales organisation germany:
- DE
- fire load:
- 0.020 MJ
- module width:
- 7 mm / 0.276 inch
- nominal voltage iii 3:
- 500 V
- packaging type:
- Box
- ratings note:
- Maximum test voltage (touch contact): 48 V (test pins are not touch-proof)
- ratings note 2:
- Maximum test current (touch contact): 0.5 AMaximum test current: 6 A (if the test pins are securely connected in the clamping units)
- safety information 1:
- Middle pressure, 2.2 N per pole
- weight:
- 1.113 g
- width:
- 7 mm / 0.276 inch
