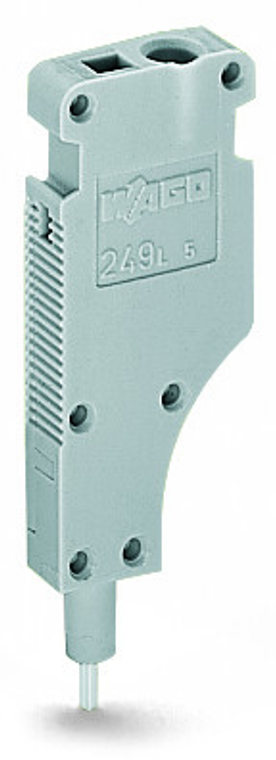

WAGO 249-141 Pack of 25
Wago
$354.50
L-type test plug module; modular; with spring-loaded contact pin; Center module; 1,50 mm²; gray.
The L-type test plug module from WAGO's 249 series is a 1-pole (1P) component designed for 1.5mm2 wires, featuring a spring-loaded contact pin and CAGE CLAMP spring connections. It has a 5mm width and comes in a gray color, equivalent to model 249141.
- actuation type:
- Operating tool
- color:
- Gray
- connectable conductor materials:
- Copper
- connection technology:
- CAGE CLAMP
- country of origin sales organisation germany:
- DE
- fine stranded conductor:
- 0.08 1.5 mm / 28 16 AWG
- fire load:
- 0.057 MJ
- legend ratings:
- (III / 3) Overvoltage category III / Pollution degree 3
- marking level:
- Side marking
- module width:
- 5 mm / 0.197 inch
- packaging type:
- Box
- pole no:
- 1
- safety information 1:
- These test plugs are not suitable for Ex e applications.
- solid conductor:
- 0.08 1.5 mm / 28 16 AWG
- strip length:
- 8 9 mm / 0.31 0.35 inch
- weight:
- 3.200 g
- width:
- 5 mm / 0.197 inch
- wiring direction:
- Front-entry wiring
