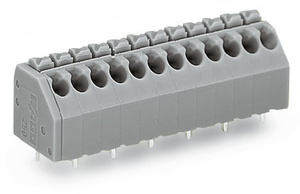

PCB terminal block; Push-button; 1.5 mm; Pin spacing 3.5 mm; 19-pole; Push-in CAGE CLAMP.
The WAGO component equivalent to 250119 is a specific part used in electrical and automation systems. It is designed to provide reliable and efficient connectivity solutions, ensuring secure and maintenance-free connections. This component is typically used in various applications, including industrial automation, building technology, and process control, offering high performance and durability. It is known for its ease of installation and compatibility with other WAGO products, making it a versatile choice for professionals in the field.
- actuation type:
- Push-button
- approvals per:
- CSA
- clamping spring material:
- Chrome nickel spring steel (CrNi)
- color:
- Gray
- conductor connection direction to pcb:
- 45
- connection technology:
- Push-in CAGE CLAMP
- contact material:
- Electrolytic copper (ECu)
- contact plating:
- Tin-plated
- country of origin sales organisation germany:
- CH
- depth:
- 12 mm / 0.472 inch
- drilled hole diameter with tolerance:
- 1 (+0.1) mm
- fine stranded conductor:
- 0.2 1.5 mm / 24 16 AWG
- fine stranded conductor with insulated ferrule:
- 0.25 1 mm
- fine stranded conductor with uninsulated ferrule:
- 0.25 1 mm
- fire load:
- 0.196 MJ
- flammability class per ul94:
- V0
- height:
- 16.7 mm / 0.657 inch
- height from the surface:
- 13.1 mm / 0.516 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 2) Overvoltage category III / Pollution degree 2
- limit temperature range:
- -60 +105 C
- material group:
- I
- nominal voltage ii 2:
- 320 V
- nominal voltage iii 3:
- 160 V
- number of solder pins per potential:
- 1
- packaging type:
- Box
- pcb contact:
- THT
- pin spacing:
- 3.5 mm / 0.138 inch
- pole no:
- 19
- rated current:
- 0.333333333333333
- rated current csa use group b:
- 0.416666666666667
- rated current csa use group d:
- 0.416666666666667
- rated current ul use group b:
- 0.208333333333333
- rated current ul use group d:
- 0.208333333333333
- rated surge voltage ii 2:
- 2.5 kV
- rated surge voltage iii 2:
- 2.5 kV
- rated surge voltage iii 3:
- 2.5 kV
- rated voltage csa use group b:
- 300 V
- rated voltage csa use group d:
- 300 V
- rated voltage iii 2:
- 160 V
- rated voltage ul use group b:
- 300 V
- rated voltage ul use group d:
- 300 V
- ratings per:
- IEC/EN 60664-1
- solder pin arrangement:
- Over the entire terminal strip (in-line)
- solder pin dimensions:
- 0.4 x 0.75 mm
- solder pin length:
- 3.6 mm
- solid conductor:
- 0.2 1.5 mm / 24 16 AWG
- strip length:
- 8.5 9.5 mm / 0.33 0.37 inch
- weight:
- 8.776 g
- width:
- 68 mm / 2.677 inch
