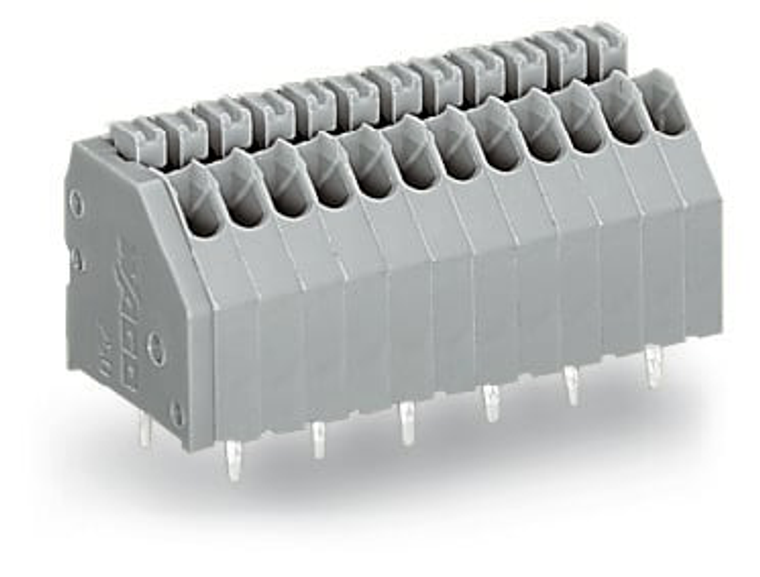

WAGO 250-404 4-Pole PCB Terminal Block, 2.5mm Pitch, Push-In Cage Clamp, 24-20 AWG, Pack of 100
Wago
$78.10
PCB terminal block; push-button; 0.5 mm²; Pin spacing 2.5 mm; 4-pole; Push-in CAGE CLAMP; 0,50 mm²; gray.
The WAGO component equivalent to 250404 is a specific type of electrical connector or terminal block used in various industrial and automation applications. It is designed to provide secure and reliable connections for electrical wiring, ensuring efficient and safe operation of electrical systems. This component is known for its durability, ease of use, and compatibility with a wide range of wire sizes and types, making it a versatile choice for engineers and technicians in the field.
- actuation type:
- Push-button
- approvals per:
- UL 1059
- clamping spring material:
- Copper alloy
- color:
- Gray
- conductor connection direction to pcb:
- 45
- conductor diameter:
- 0.4 ª 0.8 mm / 24 ª 20 AWG
- connection technology:
- Push-in CAGE CLAMP«
- contact material:
- Electrolytic copper (ECu)
- contact plating:
- Tin-plated
- country of origin sales organisation germany:
- CH
- depth:
- 12 mm / 0.472 inch
- drilled hole diameter with tolerance:
- 1 (+0.1) mm
- fine stranded conductor:
- 0.2 ª 0.5 mm / 24 ª 20 AWG
- fire load:
- 0.038 MJ
- flammability class per ul94:
- V0
- height:
- 16.7 mm / 0.657 inch
- height from the surface:
- 13.1 mm / 0.516 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 2) « Overvoltage category III / Pollution degree 2
- limit temperature range:
- -60 ª +105 C
- material group:
- I
- nominal voltage ii 2:
- 320 V
- nominal voltage iii 3:
- 160 V
- number of solder pins per potential:
- 1
- packaging type:
- Box
- pcb contact:
- THT
- pin spacing:
- 2.5 mm / 0.098 inch
- pole no:
- 4
- rated current:
- 0.166666666666667
- rated current csa use group b:
- 0.208333333333333
- rated current csa use group d:
- 0.208333333333333
- rated current ul use group b:
- 0.208333333333333
- rated current ul use group d:
- 0.208333333333333
- rated surge voltage ii 2:
- 2.5 kV
- rated surge voltage iii 2:
- 2.5 kV
- rated surge voltage iii 3:
- 2.5 kV
- rated voltage csa use group b:
- 300 V
- rated voltage csa use group d:
- 300 V
- rated voltage iii 2:
- 160 V
- rated voltage ul use group b:
- 300 V
- rated voltage ul use group d:
- 300 V
- ratings per:
- IEC/EN 60664-1
- solder pin arrangement:
- Over the entire terminal strip (staggered)
- solder pin dimensions:
- 0.4 x 0.75 mm
- solder pin length:
- 3.6 mm
- solid conductor:
- 0.14 ª 0.5 mm / 24 ª 20 AWG
- strip length:
- 8.5 ª 9.5 mm / 0.33 ª 0.37 inch
- weight:
- 1.581 g
- width:
- 11.5 mm / 0.453 inch
