WAGO 250-507/000-012

(No reviews yet) Write a Review

Write a Review

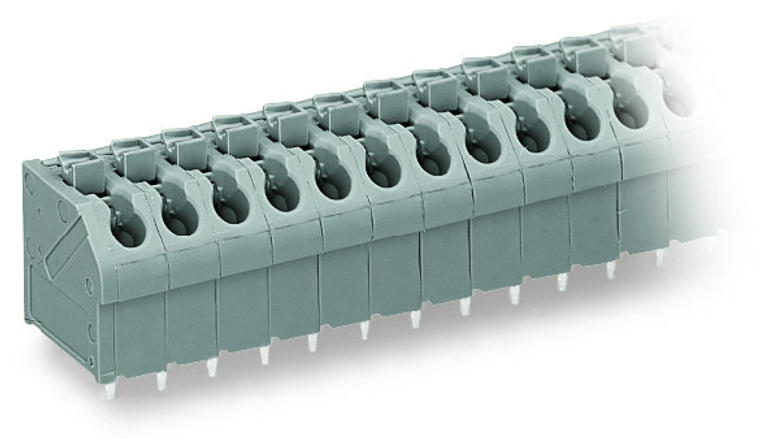

WAGO 250-507/000-012

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

250-507/000-012

UPC:

MPN:

250-507/000-012

Condition:

New

actuation type:

Push-button

approvals per:

UL 1059

clamping spring material:

Chrome-nickel spring steel (CrNi)

color:

Orange

conductor connection direction to pcb:

45 ƒƒ‚°

connection technology:

Push-in CAGE CLAMP®

CONTACT MATERIAL:

Electrolytic copper (ECu)

CONTACT PLATING:

Tin

COUNTRY OF ORIGIN VKORG GERMANY:

PL

CUSTOMS TARIFF NUMBER VKORG GERMANY:

85369010000

DEPTH:

13 mm / 0.512 inches

DRILLED HOLE DIAMETER WITH TOLERANCE:

1 (+0.1) mm

FINE STRANDED CONDUCTOR:

0.75 ƒƒ¢€¦ 1.5 mmƒƒ‚² / 18 ƒƒ¢€¦ 16 AWG

FINE STRANDED CONDUCTOR WITH INSULATED FERRULE:

0.5 ƒƒ¢€¦ 1 mmƒƒ‚²

FINE STRANDED CONDUCTOR WITH UNINSULATED FERRULE:

0.5 ƒƒ¢€¦ 1 mmƒƒ‚²

FIRE LOAD:

0.148 MJ

FLAMMABILITY CLASS PER UL94:

V0

HEIGHT:

20.5 mm / 0.807 inches

HEIGHT FROM THE SURFACE:

16.5 mm / 0.65 inches

INSULATION MATERIAL:

Polyamide (PA66)

LEGEND RATINGS:

(III / 2) ƒƒ¢‰™ Overvoltage category III / Pollution degree 2

LIMIT TEMPERATURE RANGE:

-60 ƒƒ¢€¦ +105 ƒƒ‚°C

MATERIAL GROUP:

I

MEASUREMENT ERROR DEVIATION MAX FROM THE UPPER RANGE VALUE:

MEASUREMENT ERROR DEVIATION MAX OF THE UPPER RANGE VALUE 2=

MISMATING PROTECTION:

MOUNTING NOTE=

NOMINAL VOLTAGE II 2:

630 V

NOMINAL VOLTAGE III 3:

320 V

NOTE MATERIAL DATA:

Information on material data can be found here

NUMBER OF SOLDER PINS PER POTENTIAL:

1

PCB CONTACT:

THT

PIN SPACING:

5 mm / 0.197 inches

PLUGGING WITHOUT LOSS OF PIN SPACING:

No

POLE NUMBER:

7

PRODUCT GROUP CODE:

4

RATED CURRENT:

17.5 A

RATED CURRENT CSA USE GROUP B:

0.416666666666667

RATED CURRENT CSA USE GROUP D:

0.416666666666667

RATED CURRENT UL USE GROUP B:

0.416666666666667

RATED CURRENT UL USE GROUP D:

0.416666666666667

RATED IMPULSE VOLTAGE III 2:

4 kV

RATED IMPULSE VOLTAGE III 3:

4 kV

RATED SURGE VOLTAGE II 2:

4 kV

RATED VOLTAGE CSA USE GROUP B:

300 V

RATED VOLTAGE CSA USE GROUP D:

300 V

RATED VOLTAGE III 2:

320 V

RATED VOLTAGE UL USE GROUP B:

300 V

RATED VOLTAGE UL USE GROUP D:

300 V

RATINGS PER:

IEC/EN 60664-1

SOLDER PIN ARRANGEMENT:

Over the entire terminal strip (in-line)

SOLDER PIN DIMENSIONS:

0.5 x 0.75 mm

SOLDER PIN LENGTH:

4 mm

SOLID CONDUCTOR:

0.5 ƒƒ¢€¦ 1.5 mmƒƒ‚² / 20 ƒƒ¢€¦ 14 AWG

STRIP LENGTH:

9 ƒƒ¢€¦ 10 mm / 0.35 ƒƒ¢€¦ 0.39 inches

VARIANTS:

Other pole numbers || Other colors || Mixed-color PCB connector strips || Direct marking || Other versions (or variants) can be requested from WAGO Sales or configured at https://configurator.wago.com/.

WEIGHT:

7.057 g

WIDTH:

36.5 mm / 1.437 inches
