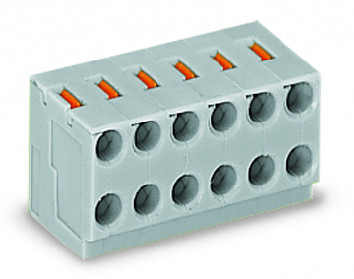

2-conductor modular PCB connectorfor individual solder pins, gray
- Compact, 2-conductor PCB connectors with push-buttons and PUSH WIRE<sup></sup> connection
- Push-in termination of solid conductors conductor removal via push-buttons
- Double entries for power supply and distribution
- Quick and easy PCB replacement
- Loop connection is retained, even when unmated
- Group arrangement is possible without losing any poles
The WAGO component equivalent to 252105 is a specific part used in electrical and automation systems. It is designed to provide reliable and efficient connectivity solutions, ensuring secure and maintenance-free connections. This component is typically used in various applications, including industrial automation, building technology, and process control, offering high performance and durability.
- actuation type:
- Push-button
- approvals per:
- UL 1059
- clamping spring material:
- Copper alloy
- color:
- Gray
- conductor connection direction to pcb:
- 0
- conductor diameter:
- 0.4 0.8 mm / 26 20 AWG
- connection technology:
- PUSH WIRE
- connector connection type:
- For PCB
- contact material:
- Electrolytic copper (ECu)
- contact plating:
- Tin-plated
- contact type pluggable connector:
- Female connector/socket
- country of origin sales organisation germany:
- PL
- depth:
- 10.5 mm / 0.413 inch
- fire load:
- 0.060 MJ
- flammability class per ul94:
- V0
- height:
- 11 mm / 0.433 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 2) Overvoltage category III / Pollution degree 2
- limit temperature range:
- -60 +105 C
- material group:
- I
- mating direction to the rail mount terminal block:
- 90
- nominal voltage ii 2:
- 630 V
- nominal voltage iii 3:
- 320 V
- packaging type:
- Box
- pin spacing:
- 3.5 mm / 0.138 inch
- pole no:
- 5
- rated current:
- 0.0833333333333333
- rated current ul use group b:
- 0.0833333333333333
- rated current ul use group d:
- 0.0833333333333333
- rated surge voltage ii 2:
- 4 kV
- rated surge voltage iii 2:
- 4 kV
- rated surge voltage iii 3:
- 4 kV
- rated voltage iii 2:
- 320 V
- rated voltage ul use group b:
- 300 V
- rated voltage ul use group d:
- 300 V
- ratings per:
- IEC/EN 60664-1
- solid conductor:
- 0.14 0.5 mm / 26 20 AWG
- strip length:
- 6 7 mm / 0.24 0.28 inch
- weight:
- 2.271 g
- width:
- 17.5 mm / 0.689 inch
