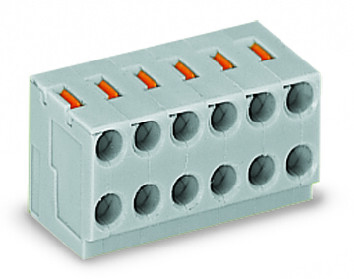

WAGO 252-106 Pack of 100
Wago
$334.00
2-conductor female connector; push-button; PUSH WIRE; 0.8 mm.
The WAGO component equivalent to 252106 is a specific part used in electrical and automation systems. It is designed to provide reliable and efficient connectivity solutions, ensuring secure and maintenance-free connections. This component is typically used in various industrial applications, including control cabinets, junction boxes, and distribution panels, to facilitate the connection of wires and cables. It is known for its high-quality construction, ease of use, and compatibility with other WAGO products, making it a preferred choice for professionals in the field.
- actuation type:
- Push-button
- approvals per:
- UL 1059
- clamping spring material:
- Copper alloy
- color:
- Gray
- conductor connection direction to pcb:
- 0
- conductor diameter:
- 0.4 0.8 mm / 26 20 AWG
- connection technology:
- PUSH WIRE
- connector connection type:
- For PCB
- contact material:
- Electrolytic copper (ECu)
- contact plating:
- Tin-plated
- contact type pluggable connector:
- Female connector/socket
- country of origin sales organisation germany:
- PL
- depth:
- 10.5 mm / 0.413 inch
- fire load:
- 0.072 MJ
- flammability class per ul94:
- V0
- height:
- 11 mm / 0.433 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 2) Overvoltage category III / Pollution degree 2
- limit temperature range:
- -60 +105 C
- material group:
- I
- mating direction to the rail mount terminal block:
- 90
- nominal voltage ii 2:
- 630 V
- nominal voltage iii 3:
- 320 V
- packaging type:
- Box
- pin spacing:
- 3.5 mm / 0.138 inch
- pole no:
- 6
- rated current:
- 0.0833333333333333
- rated current ul use group b:
- 0.0833333333333333
- rated current ul use group d:
- 0.0833333333333333
- rated surge voltage ii 2:
- 4 kV
- rated surge voltage iii 2:
- 4 kV
- rated surge voltage iii 3:
- 4 kV
- rated voltage iii 2:
- 320 V
- rated voltage ul use group b:
- 300 V
- rated voltage ul use group d:
- 300 V
- ratings per:
- IEC/EN 60664-1
- solid conductor:
- 0.14 0.5 mm / 26 20 AWG
- strip length:
- 6 7 mm / 0.24 0.28 inch
- weight:
- 2.724 g
- width:
- 21 mm / 0.827 inch
