Wago

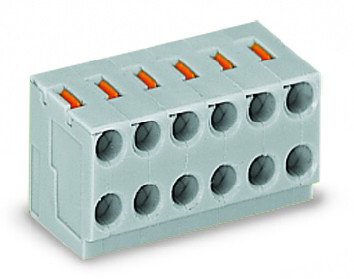

WAGO 252-110 Pack of 50

SKU:

252-110

UPC:

MPN:

252-110

Condition:

New

actuation type:

Push-button

approvals per:

UL 1059

clamping spring material:

Copper alloy

color:

Gray

conductor connection direction to pcb:

0

conductor diameter:

0.4 0.8 mm / 26 20 AWG

connection technology:

PUSH WIRE

connector connection type:

For PCB

contact material:

Electrolytic copper (ECu)

contact plating:

Tin-plated

contact type pluggable connector:

Female connector/socket

country of origin sales organisation germany:

PL

depth:

10.5 mm / 0.413 inch

fire load:

0.120 MJ

flammability class per ul94:

V0

height:

11 mm / 0.433 inch

insulation material:

Polyamide (PA66)

legend ratings:

(III / 2) Overvoltage category III / Pollution degree 2

limit temperature range:

-60 +105 C

material group:

I

mating direction to the rail mount terminal block:

90

nominal voltage ii 2:

630 V

nominal voltage iii 3:

320 V

packaging type:

Box

pin spacing:

3.5 mm / 0.138 inch

pole no:

10

rated current:

0.0833333333333333

rated current ul use group b:

0.0833333333333333

rated current ul use group d:

0.0833333333333333

rated surge voltage ii 2:

4 kV

rated surge voltage iii 2:

4 kV

rated surge voltage iii 3:

4 kV

rated voltage iii 2:

320 V

rated voltage ul use group b:

300 V

rated voltage ul use group d:

300 V

ratings per:

IEC/EN 60664-1

solid conductor:

0.14 0.5 mm / 26 20 AWG

strip length:

6 7 mm / 0.24 0.28 inch

weight:

4.536 g

width:

35 mm / 1.378 inch
