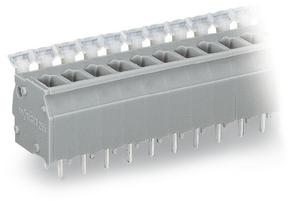

WAGO 255-403/000-009/999-950 PCB Terminal Block, 3-Pole, Push-Button, 2.5 mm², 5/5.08 mm Pin Spacing, Ex-e Certified, CAGE CLAMP®, Light Gray, Pack of 70
Wago
$287.70
PCB terminal block; push-button; 2.5 mm²; Pin spacing 5/5.08 mm; 3-pole; suitable for Ex-e applications; CAGE CLAMP; commoning option; 2,50 mm²; light gray.
The WAGO component equivalent to 255403000009999950 is a specific part used in electrical and automation systems. It is designed to provide reliable and efficient connectivity solutions, ensuring secure and stable connections in various applications. This component is known for its high quality, durability, and compatibility with other WAGO products, making it a preferred choice for professionals in the industry.
- actuation type:
- Push-button
- clamping spring material:
- Chrome nickel spring steel (CrNi)
- color:
- Light gray
- conductor connection direction to pcb:
- 90
- connection technology:
- CAGE CLAMP«
- contact material:
- Electrolytic copper (ECu)
- contact plating:
- Tin-plated
- country of origin sales organisation germany:
- CH
- depth:
- 18.3 mm / 0.72 inch
- drilled hole diameter with tolerance:
- 1.1 (+0.1) mm
- fine stranded conductor:
- 0.08 ª 2.5 mm / 28 ª 12 AWG
- fine stranded conductor with insulated ferrule:
- 0.25 ª 1.5 mm
- fine stranded conductor with uninsulated ferrule:
- 0.25 ª 1.5 mm
- fire load:
- 0.075 MJ
- flammability class per ul94:
- V0
- height:
- 18.2 mm / 0.717 inch
- height from the surface:
- 14.2 mm / 0.559 inch
- insulation material:
- Polyamide (PA66)
- limit temperature range:
- -60 ª +105 C
- material group:
- I
- note conductor cross section:
- 12 AWG: THHN, THWN
- number of solder pins per potential:
- 2
- packaging type:
- Box
- pcb contact:
- THT
- pin spacing:
- 5/5.08 mm / 0.197/0.2 inch
- pole no:
- 3
- rated current ex e ii:
- 16 A
- rated voltage en ex e ii:
- 176 V
- ratings per:
- ATEX: PTB 06 ATEX 1061 U / IECEx: PTB 06.0042 U
- solder pin arrangement:
- Over the entire terminal strip (in-line)
- solder pin dimensions:
- 0.7 x 0.7 mm
- solder pin length:
- 4 mm
- solid conductor:
- 0.08 ª 2.5 mm / 28 ª 12 AWG
- strip length:
- 5 ª 6 mm / 0.2 ª 0.24 inch
- weight:
- 3.714 g
- width:
- 17.9 mm / 0.705 inch
