Wago

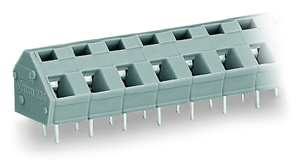

WAGO 256-404/000-009/999-950 Pack of 50

SKU:

256-404/000-009/999-950

UPC:

MPN:

256-404/000-009/999-950

Condition:

New

actuation type:

Push-button

clamping spring material:

Chrome nickel spring steel (CrNi)

color:

Light gray

conductor connection direction to pcb:

45

connection technology:

CAGE CLAMP

contact material:

Electrolytic copper (ECu)

contact plating:

Tin-plated

country of origin sales organisation germany:

CH

depth:

17.6 mm / 0.693 inch

drilled hole diameter with tolerance:

1.1 (+0.1) mm

fine stranded conductor:

0.08 2.5 mm / 28 12 AWG

fine stranded conductor with insulated ferrule:

0.25 1.5 mm

fine stranded conductor with uninsulated ferrule:

0.25 1.5 mm

fire load:

0.069 MJ

flammability class per ul94:

V0

height:

22.2 mm / 0.874 inch

height from the surface:

18.2 mm / 0.717 inch

insulation material:

Polyamide (PA66)

limit temperature range:

-60 +105 C

material group:

I

note conductor cross section:

12 AWG: THHN, THWN

number of solder pins per potential:

2

packaging type:

Box

pcb contact:

THT

pin spacing:

5/5.08 mm / 0.197/0.2 inch

pole no:

4

rated current ex e ii:

16 A

rated voltage en ex e ii:

176 V

ratings per:

ATEX: PTB 06 ATEX 1061 U / IECEx: PTB 06.0042 U

solder pin arrangement:

Over the entire terminal strip (in-line)

solder pin dimensions:

0.7 x 0.7 mm

solder pin length:

4 mm

solid conductor:

0.08 2.5 mm / 28 12 AWG

strip length:

5 6 mm / 0.2 0.24 inch

weight:

3.956 g

width:

22.9 mm / 0.902 inch
