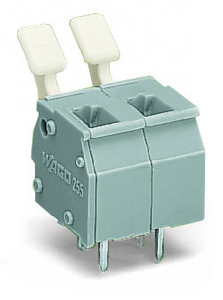

PCB terminal blockfinger-operated levers 2.5 mm Pin spacing 7.5/7.62 mm 4-pole, gray.
The WAGO component equivalent to 256504333000 is a specific part used in electrical and automation systems. It is designed for reliable and efficient connectivity, ensuring secure and maintenance-free connections. This component is typically used in various industrial applications, providing robust performance and compatibility with other WAGO products. It is known for its high quality, durability, and ease of installation, making it a preferred choice for professionals in the field.
- actuation type:
- Finger-operated lever
- approvals per:
- CSA
- clamping spring material:
- Chrome nickel spring steel (CrNi)
- color:
- Gray
- conductor connection direction to pcb:
- 45
- connection technology:
- CAGE CLAMP
- contact material:
- Electrolytic copper (ECu)
- contact plating:
- Tin-plated
- country of origin sales organisation germany:
- CH
- depth:
- 19.6 mm / 0.772 inch
- drilled hole diameter with tolerance:
- 1.1 (+0.1) mm
- fine stranded conductor:
- 0.08 2.5 mm / 28 12 AWG
- fine stranded conductor with insulated ferrule:
- 0.25 1.5 mm
- fine stranded conductor with uninsulated ferrule:
- 0.25 1.5 mm
- fire load:
- 0.089 MJ
- flammability class per ul94:
- V0
- height:
- 26.3 mm / 1.035 inch
- height from the surface:
- 22.3 mm / 0.878 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 2) Overvoltage category III / Pollution degree 2
- limit temperature range:
- -60 +105 C
- material group:
- I
- nominal voltage ii 2:
- 630 V
- nominal voltage iii 3:
- 320 V
- note conductor cross section:
- 12 AWG: THHN, THWN
- number of solder pins per potential:
- 2
- packaging type:
- Box
- pcb contact:
- THT
- pin spacing:
- 7.5/7.62 mm / 0.295/0.3 inch
- pole no:
- 4
- rated current:
- 24 A
- rated current csa use group b:
- 15 A
- rated current csa use group d:
- 0.416666666666667
- rated current ul use group b:
- 15 A
- rated current ul use group d:
- 0.416666666666667
- rated surge voltage ii 2:
- 4 kV
- rated surge voltage iii 2:
- 4 kV
- rated surge voltage iii 3:
- 4 kV
- rated voltage csa use group b:
- 300 V
- rated voltage csa use group d:
- 300 V
- rated voltage iii 2:
- 320 V
- rated voltage ul use group b:
- 300 V
- rated voltage ul use group d:
- 300 V
- ratings per:
- IEC/EN 60664-1
- solder pin arrangement:
- Over the entire terminal strip (in-line)
- solder pin dimensions:
- 0.7 x 0.7 mm
- solder pin length:
- 4 mm
- solid conductor:
- 0.08 2.5 mm / 28 12 AWG
- strip length:
- 5 6 mm / 0.2 0.24 inch
- weight:
- 4.936 g
- width:
- 32.9 mm / 1.295 inch
