Wago 256-505/000-009/999-950 Pack of 30

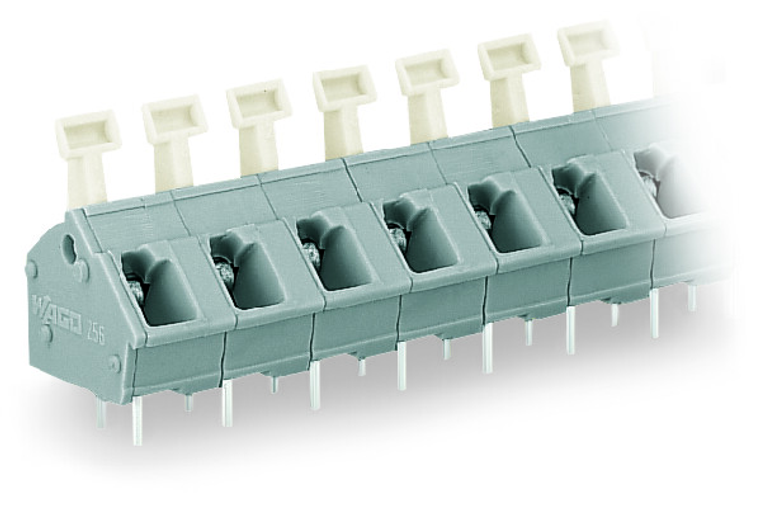

WAGO 256-505/000-009/999-950 PCB Terminal Block, Push-Button, 2.5 mm², 5-Pole, 7.5/7.62 mm Pin Spacing, Ex-e Certified, CAGE CLAMP®, Pack of 30

Wago
SKU:
256-505/000-009/999-950
Availability:
Factory stock
$178.80
Condition:
New
Current Stock:
Description
PCB terminal block; push-button; 2.5 mm²; Pin spacing 7.5/7.62 mm; 5-pole; suitable for Ex-e applications; CAGE CLAMP; commoning option; 2,50 mm²; light gray.

The WAGO component equivalent to 256505000009999950 is a specific part or product within the WAGO catalog, likely identified by its unique product number. This component is used in various electrical and automation applications, known for its reliability and efficiency. WAGO components are typically utilized in industrial settings for tasks such as signal processing, power distribution, and control systems. The exact specifications and applications of this particular component would be detailed in WAGO's product documentation or catalog.

Additional Information
actuation type:
Push-button
clamping spring material:
Chrome nickel spring steel (CrNi)
color:
Light gray
conductor connection direction to pcb:
45
connection technology:
CAGE CLAMP
contact material:
Electrolytic copper (ECu)
contact plating:
Tin-plated
country of origin sales organisation germany:
CH
depth:
17.6 mm / 0.693 inch
drilled hole diameter with tolerance:
1.1 (+0.1) mm
fine stranded conductor:
0.08 2.5 mm / 28 12 AWG
fine stranded conductor with insulated ferrule:
0.25 1.5 mm
fine stranded conductor with uninsulated ferrule:
0.25 1.5 mm
fire load:
0.115 MJ
flammability class per ul94:
V0
height:
22.2 mm / 0.874 inch
height from the surface:
18.2 mm / 0.717 inch
insulation material:
Polyamide (PA66)
limit temperature range:
-60 +105 C
material group:
I
note conductor cross section:
12 AWG: THHN, THWN
number of solder pins per potential:
2
packaging type:
Box
pcb contact:
THT
pin spacing:
7.5/7.62 mm / 0.295/0.3 inch
pole no:
5
rated current ex e ii:
16 A
rated voltage en ex e ii:
275 V
ratings per:
ATEX: PTB 06 ATEX 1061 U / IECEx: PTB 06.0042 U
solder pin arrangement:
Over the entire terminal strip (in-line)
solder pin dimensions:
0.7 x 0.7 mm
solder pin length:
4 mm
solid conductor:
0.08 2.5 mm / 28 12 AWG
strip length:
5 6 mm / 0.2 0.24 inch
weight:
5.949 g
width:
40.4 mm / 1.591 inch
