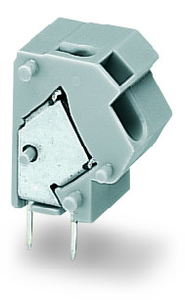

Stackable PCB terminal block; push-button; 2.5 mm²; Pin spacing 10/10.16 mm; 1-pole; CAGE CLAMP; commoning option; 2,50 mm²; orange.
The WAGO component equivalent to 257866 is a specific part used in electrical and automation systems. It is designed to provide reliable and efficient connectivity solutions, ensuring secure and stable connections in various applications. This component is known for its high quality, durability, and ease of use, making it a preferred choice for professionals in the industry. It is compatible with a range of systems and can be integrated seamlessly to enhance performance and reliability.
- actuation type:
- Push-button, angled
- approvals per:
- CSA
- clamping spring material:
- Chrome nickel spring steel (CrNi)
- color:
- Orange
- conductor connection direction to pcb:
- 0
- connection technology:
- CAGE CLAMP«
- contact material:
- Electrolytic copper (ECu)
- contact plating:
- Tin-plated
- country of origin sales organisation germany:
- PL
- depth:
- 14.2 mm / 0.559 inch
- drilled hole diameter with tolerance:
- 1.1 (+0.1) mm
- fine stranded conductor:
- 0.08 ª 2.5 mm / 28 ª 12 AWG
- fine stranded conductor with insulated ferrule:
- 0.25 ª 1.5 mm
- fine stranded conductor with uninsulated ferrule:
- 0.25 ª 1.5 mm
- fire load:
- 0.035 MJ
- flammability class per ul94:
- V0
- height:
- 24.2 mm / 0.953 inch
- height from the surface:
- 20.2 mm / 0.795 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 2) « Overvoltage category III / Pollution degree 2
- limit temperature range:
- -60 ª +105 C
- material group:
- I
- nominal voltage ii 2:
- 1000 V
- nominal voltage iii 3:
- 630 V
- note conductor cross section:
- 12 AWG: THHN, THWN
- number of solder pins per potential:
- 2
- packaging type:
- Box
- pcb contact:
- THT
- pin spacing:
- 10/10.16 mm / 0.394/0.4 inch
- pole no:
- 1
- rated current:
- 24 A
- rated current csa use group b:
- 15 A
- rated current csa use group d:
- 0.416666666666667
- rated current ul use group b:
- 15 A
- rated current ul use group d:
- 0.416666666666667
- rated surge voltage ii 2:
- 8 kV
- rated surge voltage iii 2:
- 8 kV
- rated surge voltage iii 3:
- 8 kV
- rated voltage csa use group b:
- 300 V
- rated voltage csa use group d:
- 300 V
- rated voltage iii 2:
- 1000 V
- rated voltage ul use group b:
- 300 V
- rated voltage ul use group d:
- 300 V
- ratings per:
- IEC/EN 60664-1
- solder pin arrangement:
- Within the terminal block (in-line)
- solder pin dimensions:
- 0.7 x 0.7 mm
- solder pin length:
- 4 mm
- solid conductor:
- 0.08 ª 2.5 mm / 28 ª 12 AWG
- strip length:
- 5 ª 6 mm / 0.2 ª 0.24 inch
- weight:
- 1.646 g
- width:
- 12.8 mm / 0.504 inch
