Description
4-conductor terminal strip; with fixing flanges; for screw or similar mounting types; Fixing hole 3.2 mm with 209-123 mounting carrier for DIN 35 rail; 12-pole
View AllClose
Electrical Data
- Rated voltage (III / 3): 400 V
- Rated impulse voltage (III / 3): 6 kV
- Rated current: 18 A
- Legend (ratings): (III / 3) Overvoltage category III / Pollution degree 3
Connection Data
- Connection technology: CAGE CLAMP<sup></sup>
- Actuation type: Operating tool
- Connectable conductor materials: Copper
- Solid conductor: 0.08 1.5 mm / 28 16 AWG
- Fine-stranded conductor: 0.08 1.5 mm / 28 16 AWG
- Strip length: 8 9 mm / 0.31 0.35 inch
- No. of poles: 12
- Total number of connection points: 48
- Total number of potentials: 12
- Number of levels: 1
- Type of wiring: Side-entry wiring
Geometrical Data
- Width: 110.5 mm / 4.35 inch
- Height from the surface: 17 mm / 0.669 inch
- Depth: 25 mm / 0.984 inch
- Module width: 8 mm / 0.315 inch
Mechanical Data
- Design: horizontal
- Mounting type: Mounting flange
- Marking level: Side marking
Material Data
- Color: gray
- Fire load: 0.531 MJ
- Weight: 31.480 g
Commercial data
- Packaging type: BOX
- Country of origin: DE
- GTIN: 4044918594257
- Customs Tariff No.: 85369010000

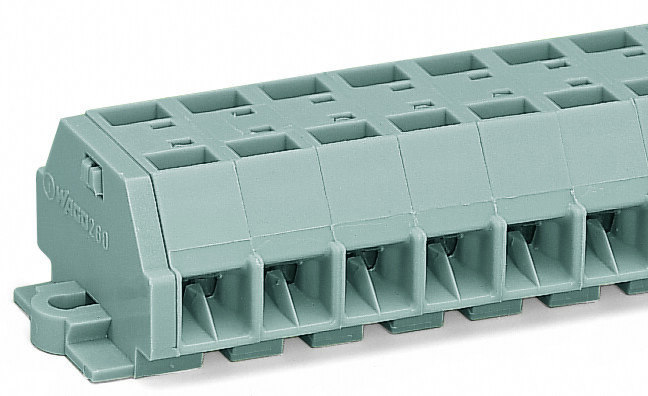

The WAGO 260 series feed-through terminal strip is a gray, 1-deck terminal block featuring 12 feed-through poles and 48 wire connections (24 clamps on each side), suitable for wire sizes ranging from 0.08mm² to 1.5mm² or #28AWG to #16AWG. It supports a rated current of 18A and utilizes CAGE CLAMP spring connections for secure and reliable wiring. The terminal strip has a 3.2mm fixing hole for mounting and is equivalent to model 260212.
