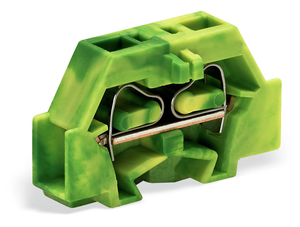

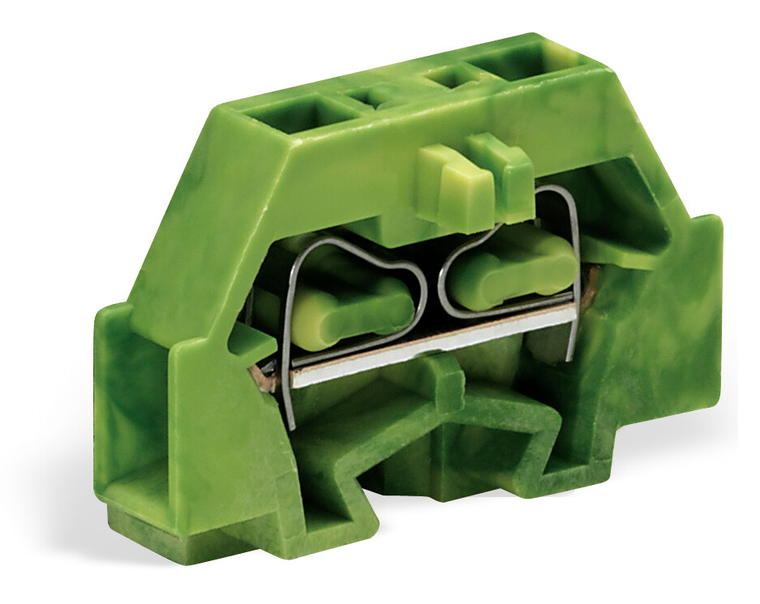

WAGO 260-307 2-Conductor Terminal Block, 18A, Green-Yellow, Pack of 50
Wago
$41.00
2-conductor terminal block; without push-buttons; with fixing flange; 1-pole; for screw or similar mounting types; Fixing hole 3.2 mm Ã; 1.5 mm²; CAGE CLAMP; 1,50 mm²; green-yellow.
The WAGO 260 series is a green-yellow feed-through grounding terminal block with one deck and side marking slots, designed for protective earth connections. It accommodates two wires using two clamps (1+1) and supports wire sizes from 0.08mm² to 1.5mm² or #28AWG to #16AWG. The terminal block features CAGE CLAMP spring connections and has a 3.2mm fixing hole for mounting, equivalent to model 260307.
- actuation type:
- Operating tool
- color:
- Green-yellow
- connectable conductor materials:
- Copper
- connection technology:
- CAGE CLAMP
- country of origin sales organisation germany:
- CH
- depth:
- 25.1 mm / 0.988 inch
- design:
- Horizontal type
- fine stranded conductor:
- 0.08 1.5 mm / 28 16 AWG
- fire load:
- 0.031 MJ
- flammability class per ul94:
- V0
- height from the surface:
- 17.1 mm / 0.673 inch
- insulation material:
- Polyamide (PA66)
- marking level:
- Side marking
- mounting type:
- Mounting flange
- packaging type:
- Box
- solid conductor:
- 0.08 1.5 mm / 28 16 AWG
- strip length:
- 8 9 mm / 0.31 0.35 inch
- weight:
- 1.603 g
- width:
- 5 mm / 0.197 inch
- wiring direction:
- Side-entry wiring
